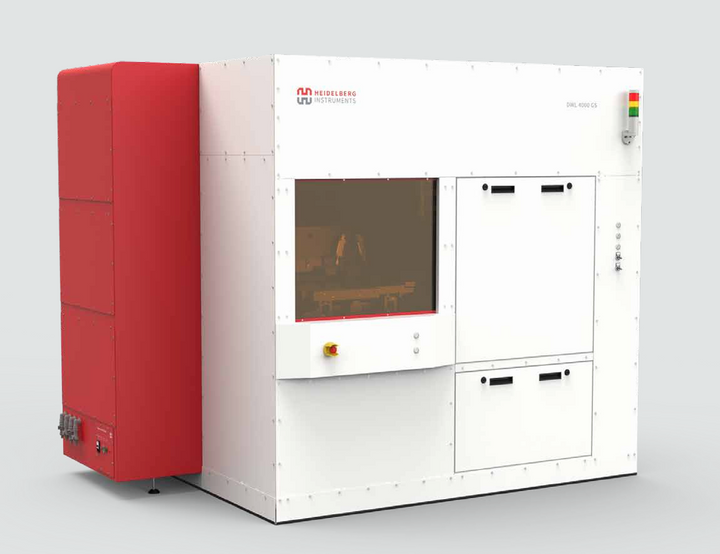

The industrial-level grayscale lithography tool

The DWL 2000 GS / DWL 4000 GS Laser Lithography systems are fast and flexible high-resolution pattern generators. They are optimized for industrial-level Grayscale Lithography and designed for high-throughput patterning of masks and wafers for integrated circuits, MEMS, micro-optic and microfluidic devices, sensors, holograms, and security features on banknotes and ID cards.

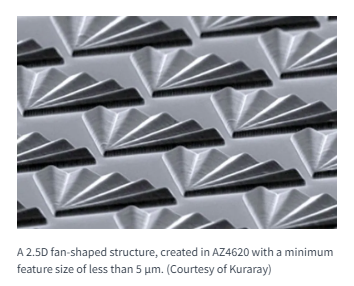

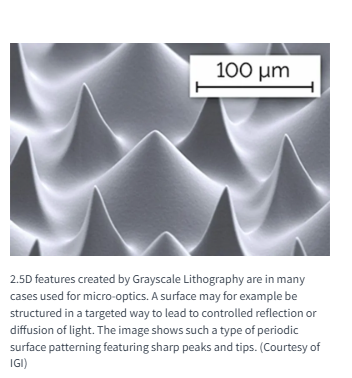

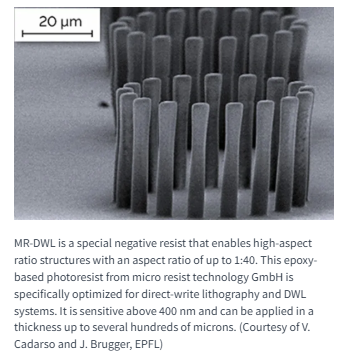

The Professional Grayscale Lithography Mode enables patterning of complex 2.5D structures in thick photoresist over large areas. With a minimum feature size of 500 nm, a write area of up to 400 x 400 mm2 and optional automatic loading system, the DWL 2000 GS / DWL 4000 GS systems are particularly suitable for wafer-level micro-optics used for telecommunications, illumination, and industrial display manufacturing, as well as for device fabrication in life sciences.

Product Highlights Direct Write Lithography

Exposure Quality

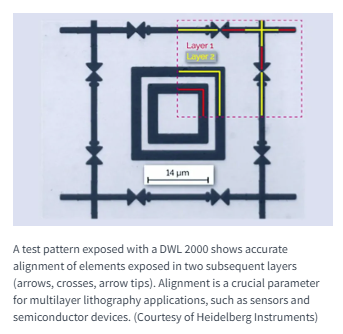

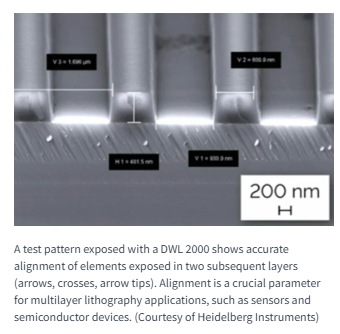

CD uniformity 60 nm; edge roughness 40 nm; alignment accuracy 60 nm; 2nd layer alignment 250 nm; autofocus compensation 80 µm

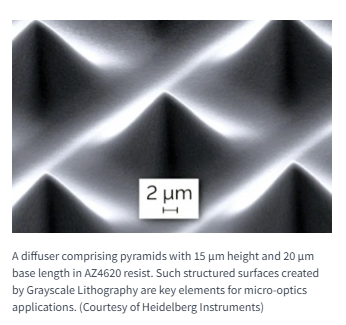

Grayscale Lithography

1024 gray levels; dedicated GenISys BEAMER software for optimizing the exposure of complex geometries

Temperature-controlled Flow Box

Temperature stability ± 0.1°, ISO 4 environment

Exposure Speed

area of 200 x 200 mm2 in grayscale mode in <60 minutes


Large Substrate Size

Up to 20 / 40 cm

Available Modules:

5 Write Modes
Minimum feature sizes from 500 nm to 2 μm

Exposure Wavelength

Diode laser at 405 nm

Autofocus

Air-gauge or optical

Automation

Loading unit; additional substrate carrier station, pre-aligner, and substrate scanner

GenISys BEAMER

Conversion software packages with 3D proximity correction (3D-PEC) for grayscale exposures of complex shapes

Write mode


I II III IV V
Writing performance - Grayscale






Overlay [3σ, nm] (over 8” x 8”)



300

Pixel Grid Grayscale [nm]


100 200 250 500 1000
Write Speed DWL 2000 GS [mm2/minute]


12 50 75 270 870
Write Speed DWL 4000 GS [mm2/minute]


12 50 75 270 1000
Exposure Time DWL 2000 GS: For 200 mm x 200 mm [hours]


51 13.5 9 2.5 0.8
Exposure Time DWL 4000 GS: For 400 mm x 400 mm [hours]


223 54 36 10 3
Maximum Dose [mJ/cm2 ]


5600 1400 900 225 50
Writing performance - Binary






Minimum Feature Size [µm]


0.5 0.7 0.8 1 2
Minimum Lines and Spaces [µm]


0.7 0.9 1 1.5 3
Address Grid [nm]


5 10 12.5 25 50
Edge Roughness [3σ, nm]


40 50 60 80 110
CD Uniformity [3σ, nm]


60 70 80 130 180
Registration [3σ, nm]


200 200 200 200 200
Write Speed [mm²/minute] DWL 2000 GS


12 50 75 270 870
Write Speed [mm²/minute] DWL 4000 GS


12 50 75 270 1000



System features
Light source Diode laser with 405 nm
Maximum substrate size DWL 2000 GS: 9″ x 9″ / DWL 4000 GS: 17″ x 17″
Substrate thickness 0 to 12 mm
Maximum exposure area DWL 2000 GS: 200 x 200 mm² / DWL 4000 GS: 400 x 400 mm²
Temperature controlled flow box Temperature stability ± 0.1°, ISO 4 environment
Real-time autofocus Optical autofocus or air-gauge autofocus
Autofocus compensation range 80 μm
System dimensions
Lithography unit (width × depth × height); weight 2350 mm × 1650 mm × 2100 mm; 3000 kg
Electronic rack (width × depth × height); weight 800 mm × 600 mm × 1800 mm; 180 kg
Installation requirements
Electrical 400 VAC ± 5 %, 50/60 Hz, 16 A
Compressed air 6 - 10 bar
Cleanroom ISO 6 or better recommended
fact-sheet-DWL-2000-GS.pdf
