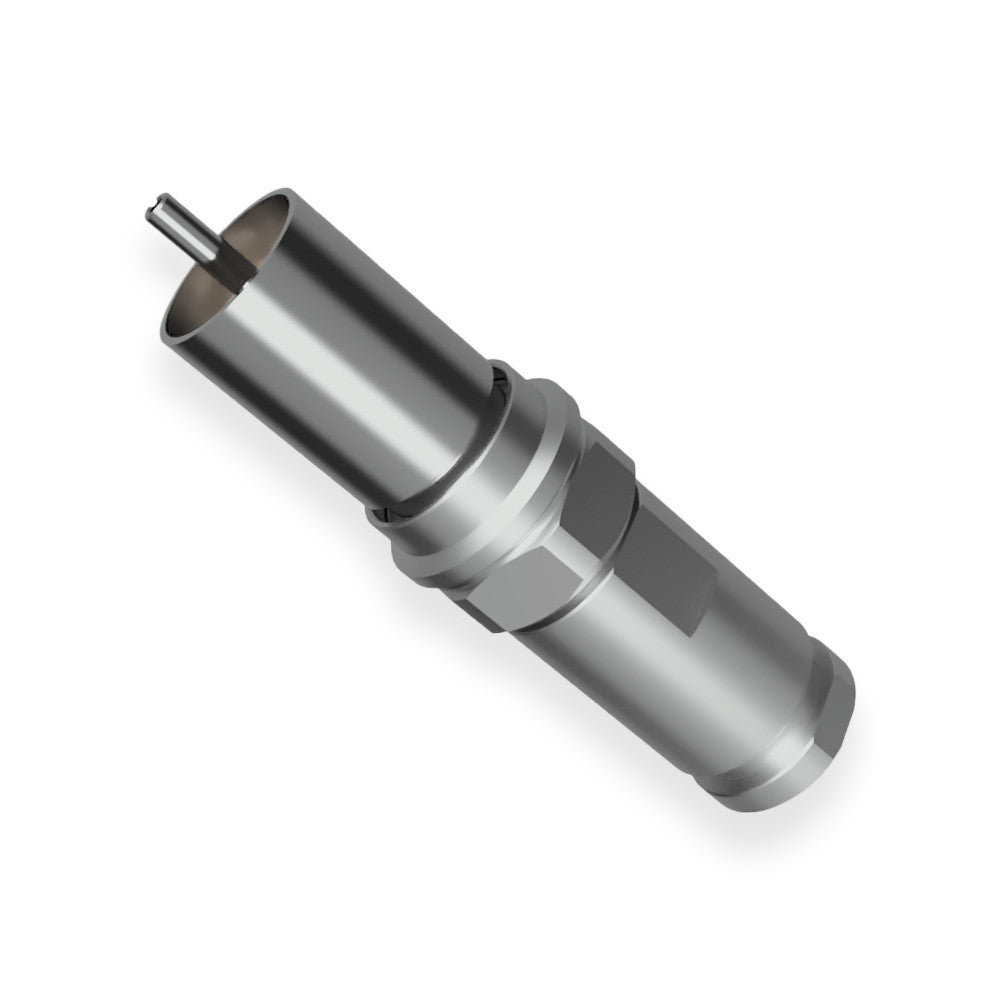

WELDABLE TYPE N FEEDTHROUGH, 50 OHM, 3KV DC, INCLUDES AIR SIDE CONNECTOR

Allectra SKU: 242-N50
WELDABLE TYPE N FEEDTHROUGH, 50 OHM, 3KV DC, INCLUDES AIR SIDE CONNECTOR

WELDABLE TYPE N FEEDTHROUGH, 50 OHM, 3KV DC, INCLUDES AIR SIDE CONNECTOR

Allectra SKU: 242-N50
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN Weld
  • Compliance N type 50 ohm
  • Vacuum Seal Ceramic
  • Body Material Fe-Ni-Co
  • Voltage Rating 3 KV DC
  • Max Current 5A per pin
  • Temperature Range -200°C to 300°C
  • Impedance 50 ohms
  • Number of Pins 1
