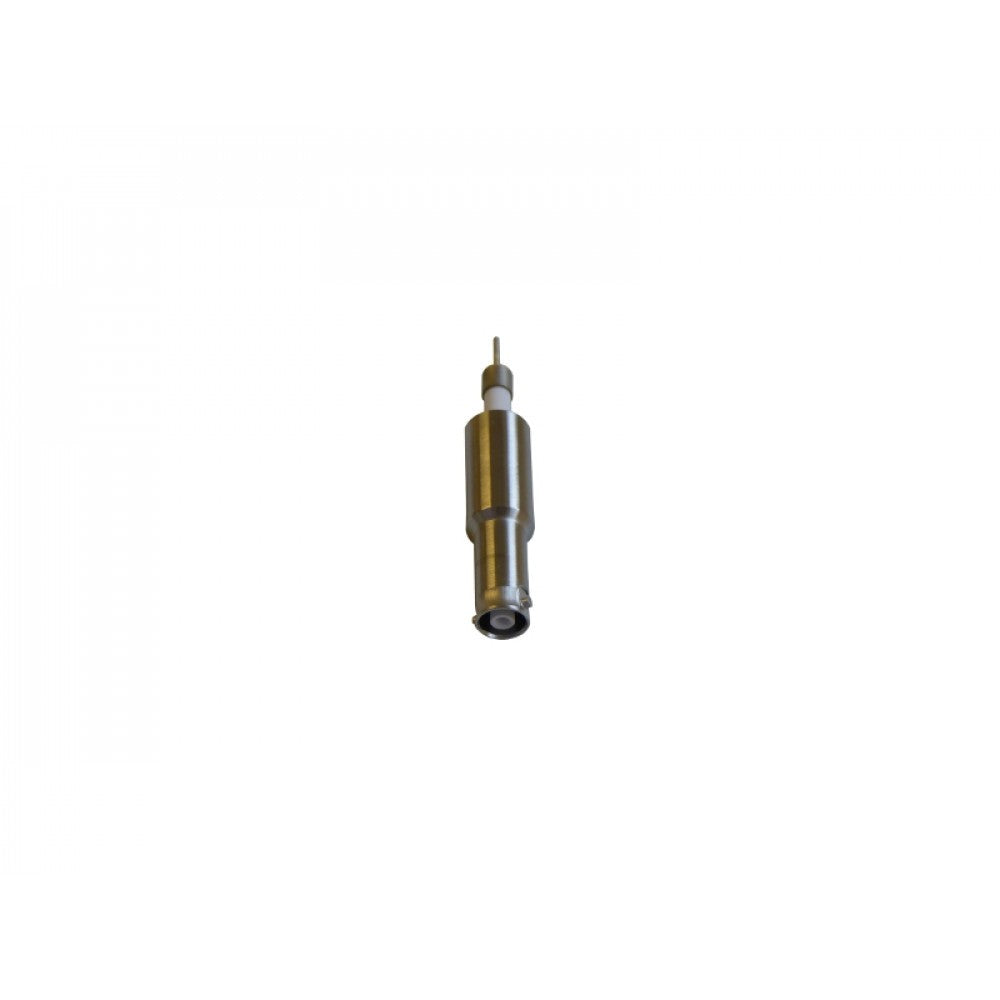

WELDABLE SHV 10KV COAXIAL FEEDTHROUGH, EXPOSED TYPE, AIR SIDE CONNECTOR

<img class="lazyloaded" src="//nanovactech.com/cdn/shop/products/WELDABLE_SHV_10KV_COAXIAL_FEEDTHROUGH_EXPOSED_TYPE_AIR_SIDE_CONNECTOR_800x.jpg?v=1720155580" alt="WELDABLE SHV 10KV COAXIAL FEEDTHROUGH, EXPOSED TYPE, AIR SIDE CONNECTOR">

Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN Weld
Compliance SHV10kV
Conductor Material Nickel
Body Material Stainless Steel/Nickel
Voltage Rating 10 kV DC
Max Current 5 Amps
Temperature Range -200°C to 450°C (Air side Connector -65oC to 165oC)
Number of Pins 1
