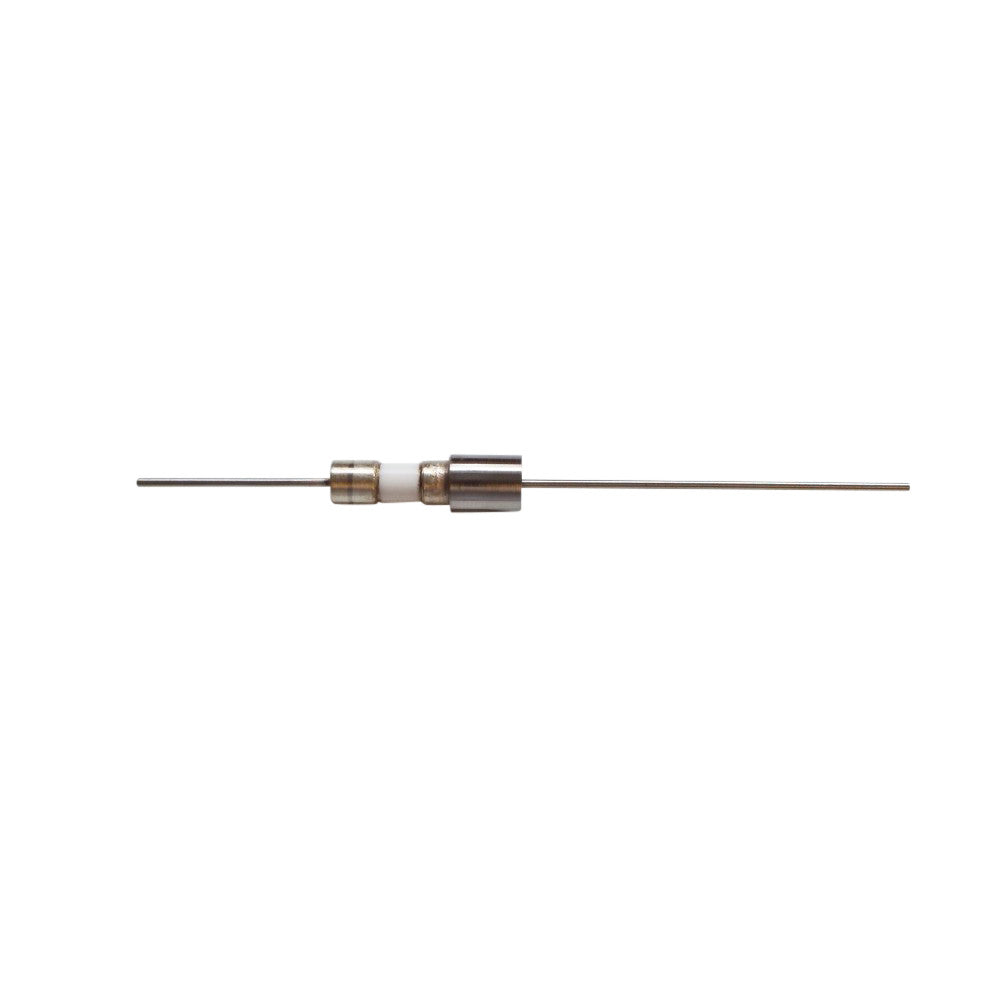

WELDABLE POWER FEEDTHROUGH, STN STL CONDUCTOR, 1 PIN, 2KV, PIN ⌀ 1.3mm

<img class="lazyloaded" src="//nanovactech.com/cdn/shop/products/large_5c4d5a81-dd77-4d42-8420-6c049a2e7657_800x.jpg?v=1684208729" alt="WELDABLE POWER FEEDTHROUGH, STN STL CONDUCTOR, 1 PIN, 2KV, PIN ⌀ 1.3mm">

Your inquiry was submitted successfully. You can expect to hear from us shortly.

Multi-pin versions available on request

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN Weld
Compliance Power feedthrough
Conductor Material Stainless steel
Body Material Stainless Steel/Ceramic
Voltage Rating 2 kV DC
Max Current 1 Amp
Temperature Range -100°C to 450°C
Number of Pins 1
