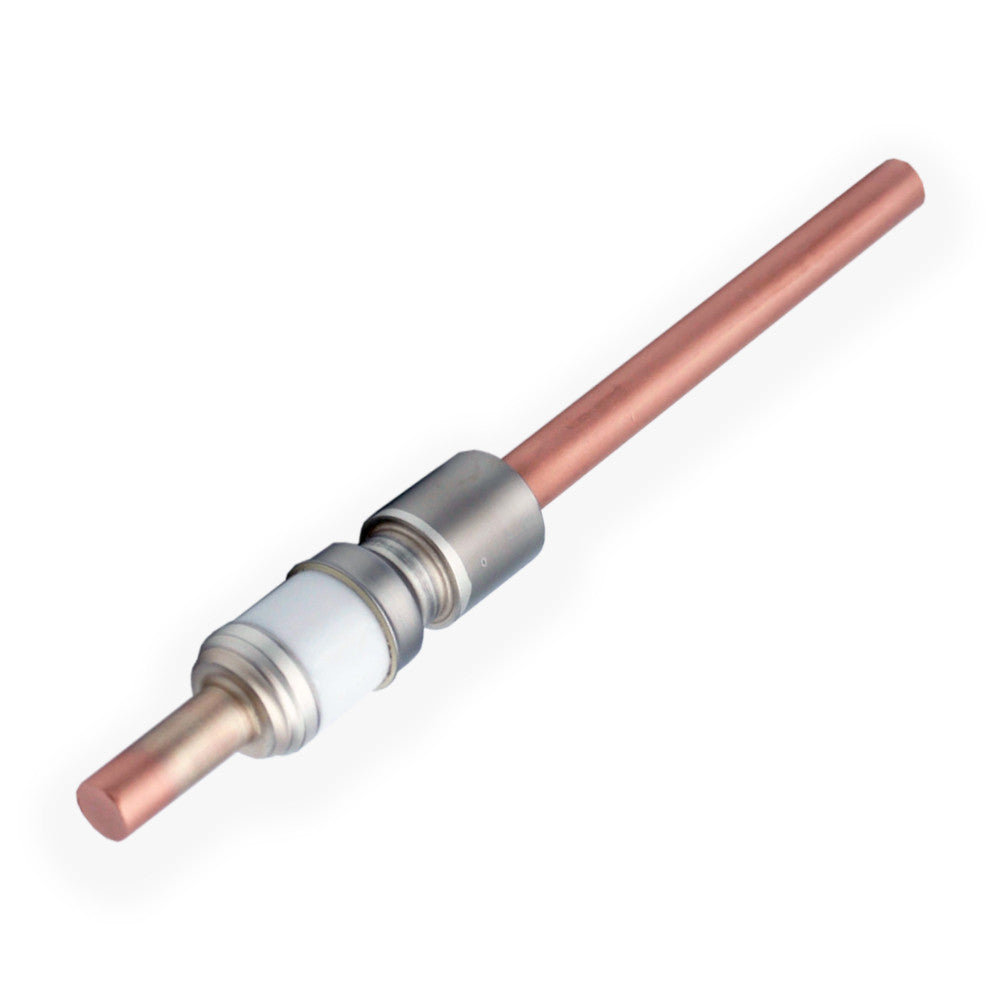

WELDABLE POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 300A, PIN ⌀ 9.65mm

Allectra SKU: 261-96CU8K
WELDABLE POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 300A, PIN ⌀ 9.65mm

WELDABLE POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 300A, PIN ⌀ 9.65mm

Allectra SKU: 261-96CU8K
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Multi-pin versions available on request

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN Weld
  • Compliance Power feedthrough
  • Conductor Material COPPER
  • Body Material Stainless Steel/Ceramic
  • Voltage Rating 8 kV DC
  • Max Current 300 Amps
  • Temperature Range -100°C to 450°C
  • Number of Pins 1
