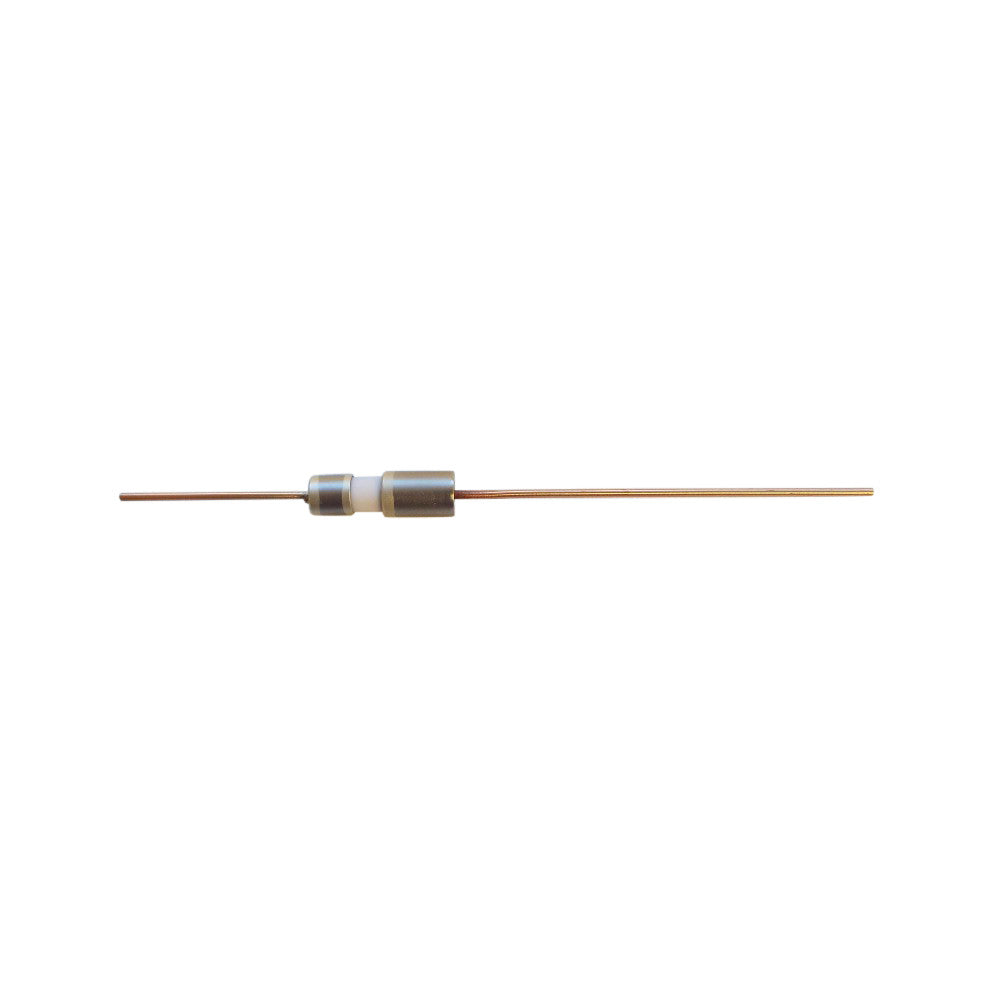

WELDABLE POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 2KV DC, 25A

<img class="lazyloaded" src="//nanovactech.com/cdn/shop/products/WELDABLE_POWER_FEEDTHROUGH_COPPER_CONDUCTOR_1_PIN_2KV_DC_25A_800x.jpg?v=1718344630" alt="WELDABLE POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 2KV DC, 25A">

Your inquiry was submitted successfully. You can expect to hear from us shortly.

Multi-pin versions available on request

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN Weld
Compliance Power feedthrough
Conductor Material COPPER
Body Material Stainless Steel/Ceramic
Voltage Rating 2 kV DC
Max Current 25 Amps
Temperature Range -100°C to 450°C
Number of Pins 1
