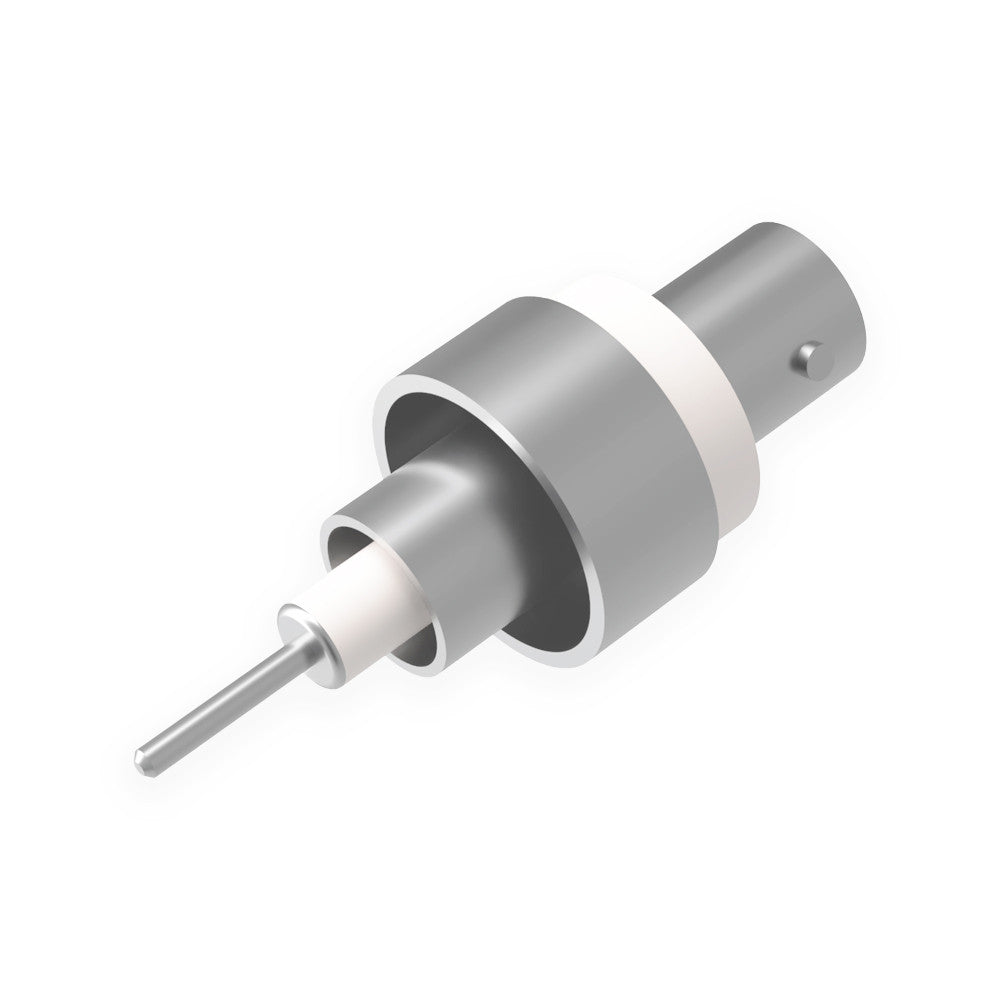

WELDABLE FLOATING SHIELD SHV FEEDTHOUGH, 50 OHM, 6kV

Allectra SKU: 242-SHVF50
WELDABLE FLOATING SHIELD SHV FEEDTHOUGH, 50 OHM, 6kV

WELDABLE FLOATING SHIELD SHV FEEDTHOUGH, 50 OHM, 6kV

Allectra SKU: 242-SHVF50
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• SHV Type - Floating Shield • Maximum Current - 3A • Maximum Voltage - 6kV • Impedance - 50Ω • Insulation - Ceramic • Temperature Range -200°C to 300°C

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Conductor Material Fe-Ni-Co
  • Voltage Rating 6 kV DC
  • Max Current 3A
  • Temperature Range -200°C to 300°C
