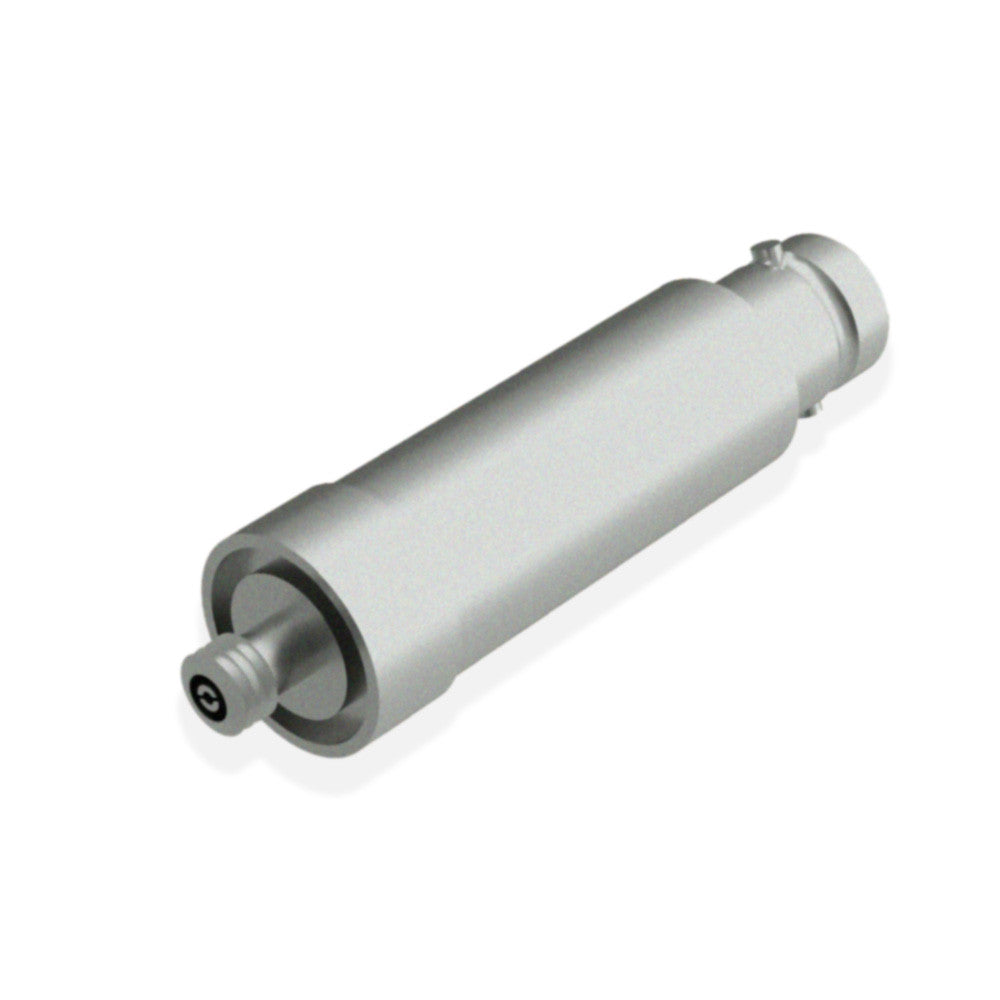

WELDABLE COAXIAL BNC-MICRODOT CRYSTAL SENSOR F/T, 1 PIN, GROUNDED SHIELD, AIR-SIDE BNC CONNECTOR INC

Allectra SKU: 243-MDOT-BNC
WELDABLE COAXIAL BNC-MICRODOT CRYSTAL SENSOR F/T, 1 PIN, GROUNDED SHIELD, AIR-SIDE BNC CONNECTOR INC

WELDABLE COAXIAL BNC-MICRODOT CRYSTAL SENSOR F/T, 1 PIN, GROUNDED SHIELD, AIR-SIDE BNC CONNECTOR INC

Allectra SKU: 243-MDOT-BNC
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Grounded Shield • Voltage: 500 Volts DC • Current: 2 Amps • Temperature Rating: -200 TO 450°C (Feedthrough), 65 TO 165°C (Airside connector,) • Impedance: Non- Constant These feedthroughs, sometime referred to as ‘between series’ feedthroughs, are commonly used in conjunction with crystal sensors to monitor deposition thicknesses of in-vacuum coating applications

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Voltage Rating 500 Volts DC
  • Max Current 2 Amps
  • Temperature Range -200 TO 450°C (Feedthrough), 65 TO 165°C (Airside connector,)
  • Number of Pins 1
