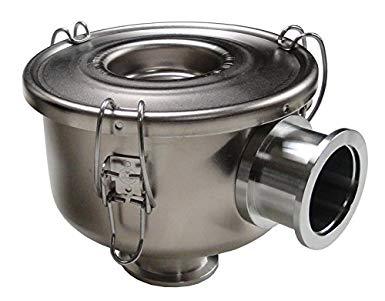

Vacuum Pump Inlet Particulate Filter, Nickel Finish, KF25 - HEPA Filter

Vacuum pump inlet filter/foreline trap with Nickel body finish, KF25 Stainless Steel Flanges and HEPA filter. Used to trap particulates prior to entering the vacuum pump.

Features

• 99%+ removal efficiency standard Polyester: 5 microns, Paper: 2 microns
• Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)
• Filter change out differential: 15-20" H2O over initial delta P
• Stainless steel torsion clips for durability
• O-ring seal
• Carbon steel construction
• Seamless drawn housings
• Vacuum leak rate: Typically 1x10-5mmHg (1x10-5mbar-L/sec)
• Stainless steel ISO flanges
• Electroless nickel finish
• Vacuum Rating: Medium vacuum service
• Prevents dry scroll tip mirgration
• Polycrystalline silicone ingot production
• Vacuum coating
• Solar cell lamination
• Trap condensable vapors
• Thin-film manufacturing
• Protects against backstreaming

Applications

• Leak Detection
• Medical
• Vacuum Pump-Rotary Piston
• Vacuum Pump-Rotary Vane
• Scroll Dry Pump
• Backstreaming-Protect the system from pump fluid or particulate migration
• Prevent dry scroll tip seal migration
• Laser technology
• Vacuum coating and lamination

Options

• Stainless steel (select models)
• Contact factory for larger sizes & ISO flanges
• Viton seals
• Activated Alumina, Activated Zoelite media available for foreline trap and other applications
