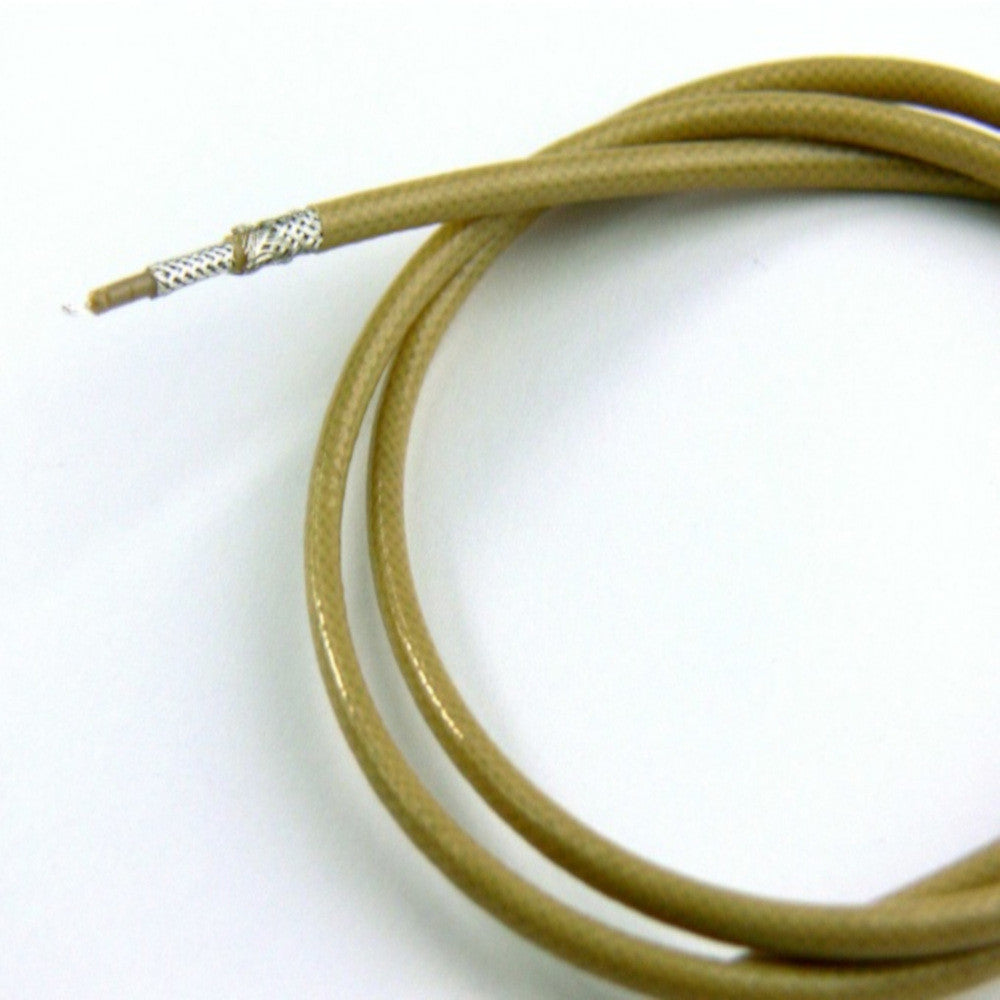

TRIAXIAL PEEK CABLE, 50 Ohm, 7 X 0.12mm MULTISTRAND INNER CONDUCTOR, 5m LONG

Allectra SKU: 310-PEEK50-TRIAX-5M
TRIAXIAL PEEK CABLE, 50 Ohm, 7 X 0.12mm MULTISTRAND INNER CONDUCTOR, 5m LONG

TRIAXIAL PEEK CABLE, 50 Ohm, 7 X 0.12mm MULTISTRAND INNER CONDUCTOR, 5m LONG

Allectra SKU: 310-PEEK50-TRIAX-5M
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Double shielded PEEK Triaxial cable

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Voltage Rating 4KV DC in vacuum (conductor to Shield 1 and Shield 1 to Shield 2)
  • Temperature Range -65°C to 250°C (-200°C for non-flex applications)
  • Impedance 50 Ohm (conductor to first shield)
  • Radiation Resistance 10E9 Rad = 10E7 Gy
  • Disruptive Voltage > 10KV DC
