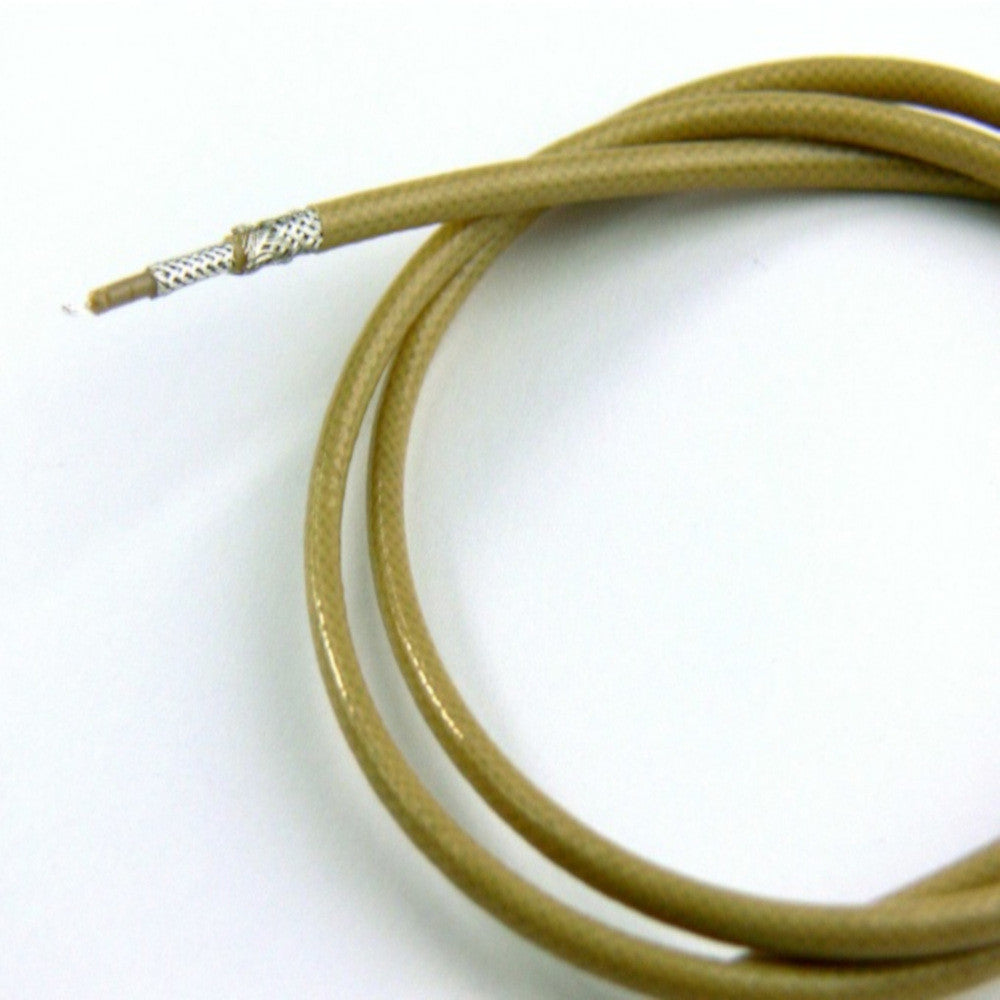

TRIAXIAL PEEK CABLE, 50 Ohm, 7 X 0.12mm MULTISTRAND INNER CONDUCTOR, 10m LONG

Double shielded PEEK Triaxial cable

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Voltage Rating 4KV DC in vacuum (conductor to Shield 1 and Shield 1 to Shield 2)
• Temperature Range -65°C to 250°C (-200°C for non-flex applications)
• Impedance 50 Ohm (conductor to first shield)
• Radiation Resistance 10E9 Rad = 10E7 Gy
• Disruptive Voltage > 10KV DC
