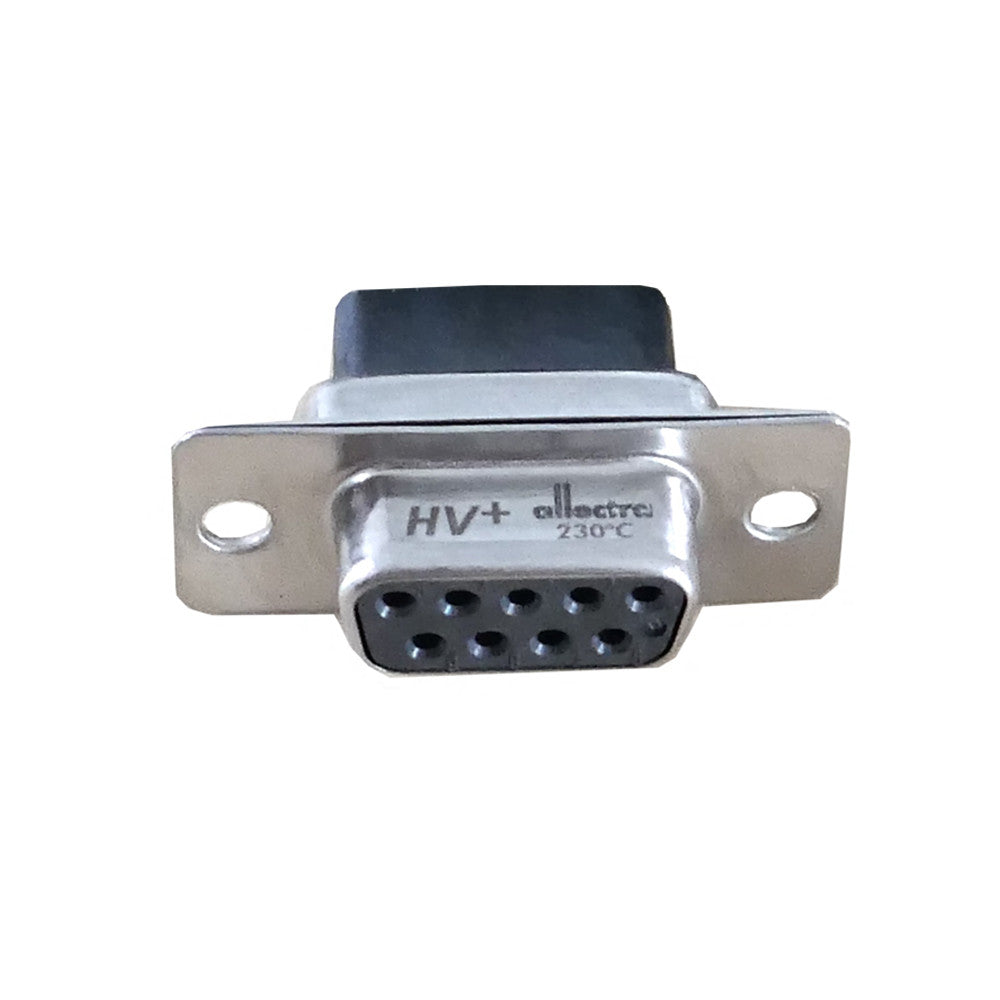

SUB-D 9-WAY HV, HIGH TEMPERATURE CONNECTOR, FEMALE

Allectra SKU: 211-FS09-HV-PLUS
SUB-D 9-WAY HV, HIGH TEMPERATURE CONNECTOR, FEMALE

SUB-D 9-WAY HV, HIGH TEMPERATURE CONNECTOR, FEMALE

Allectra SKU: 211-FS09-HV-PLUS
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• High temperature use up to 230°C • Cables can be pre-fitted with crimp pins; installation time is significantly reduced • Low outgassing rates and high temperature materials are compatible with a wide range of applications • Using 230°C O-rings for instance from Biallec, KF /ISO-flanged feedthroughs can be used at elevated temperatures • Longer housing on the rear protect cables against short-circuiting

Specifications

  • Vacuum Leak Rate ≥ 1x10-9 mbar
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Body Material Stainless steel outer shell Glass-filled liquid crystal polymer
  • Temperature Range -55°C … +200°C continuous up to 230°C for 12h
  • Number of Pins 9
