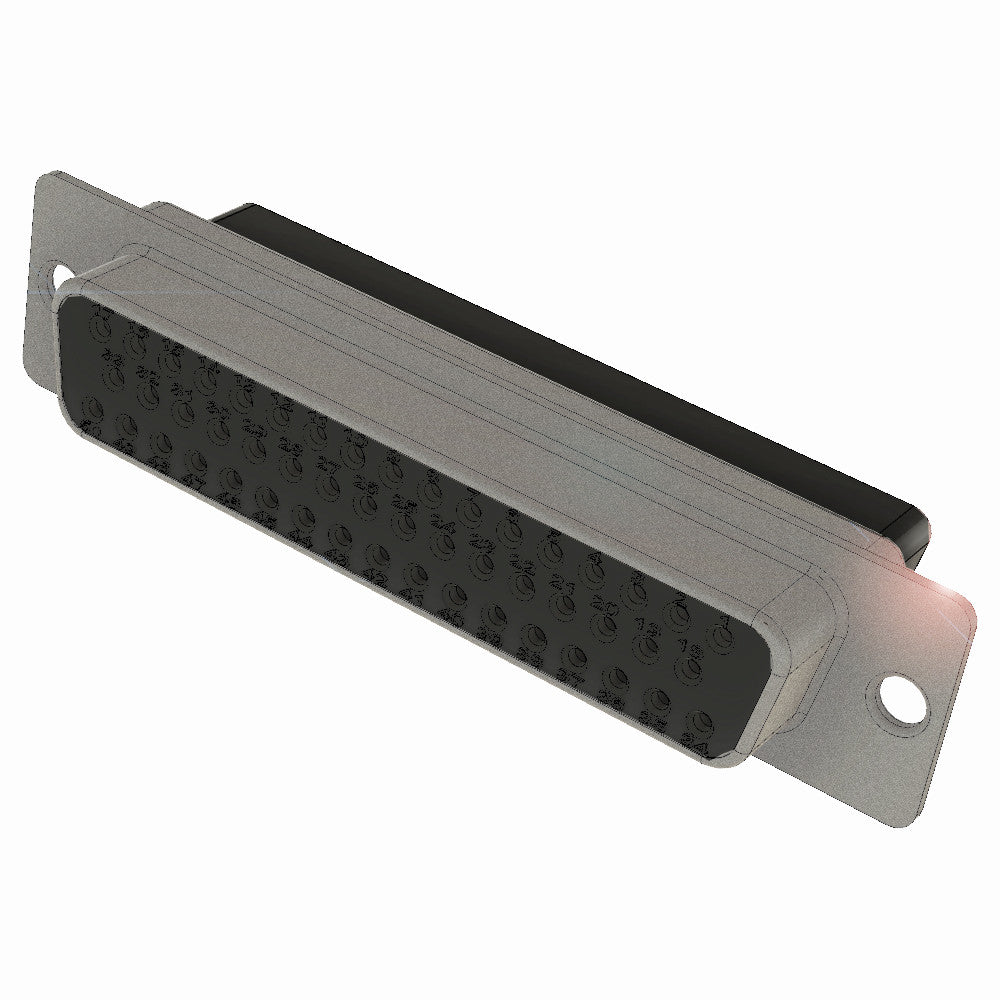

SUB-D 50-WAY HV SOCKET, FEMALE

SUB-D 50-WAY HV SOCKET, FEMALE

Allectra SKU: 211-FS50-HV-V2
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Note: New Version (V2). To Avoid confusion new version is black instead of green • The Stainless-Steel Housing is no longer clipped together, fitting to housing improved • New material has significantly lower outgassing • Useable temperature range is enhanced • Longer housing on the back results in greater security against short circuit of cables • Pins need to be ordered separately

Specifications

  • Vacuum Leak Rate HV SUB-D <1x10-8 mbar l/s
  • Size or DN 50-way
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Body Material Liquid Crystal polymer, glass filled
  • Temperature Range -55oC to 125oC
  • Number of Pins 50
