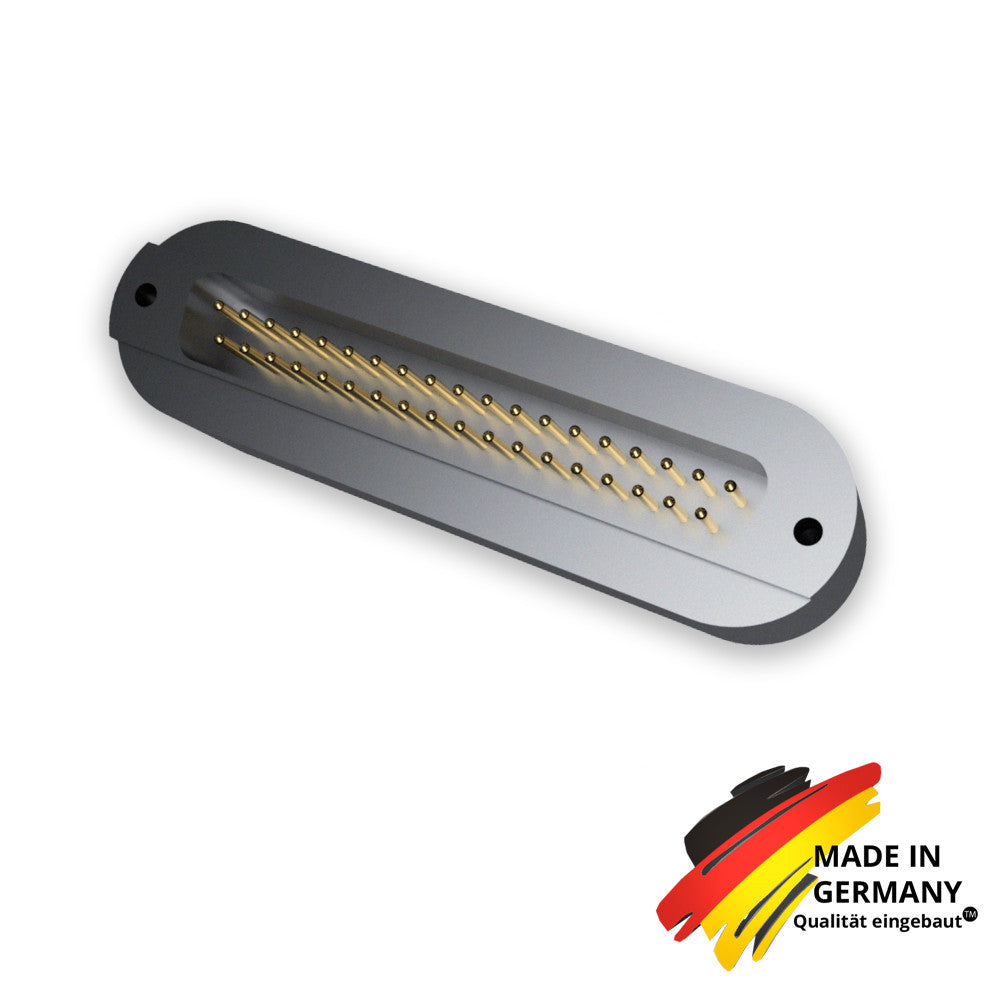

SUB-D 37 WAY WELDABLE FEEDTHROUGH, HIGH CURRENT VERSION

Standard Sub-D feedthroughs can now be used for much higher current ratings. New crimp pin technology and thicker invacuum cables have doubled the continuous current per pin – up to 6A with all pins loaded, and 10A for periods shorter than 5 minutes.

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Compliance DIN 41652, MIL-C-24308
• Temperature Range -200°C to 250°C (UHV) -40°C to 200°C (HV)
• Number of Pins 37
