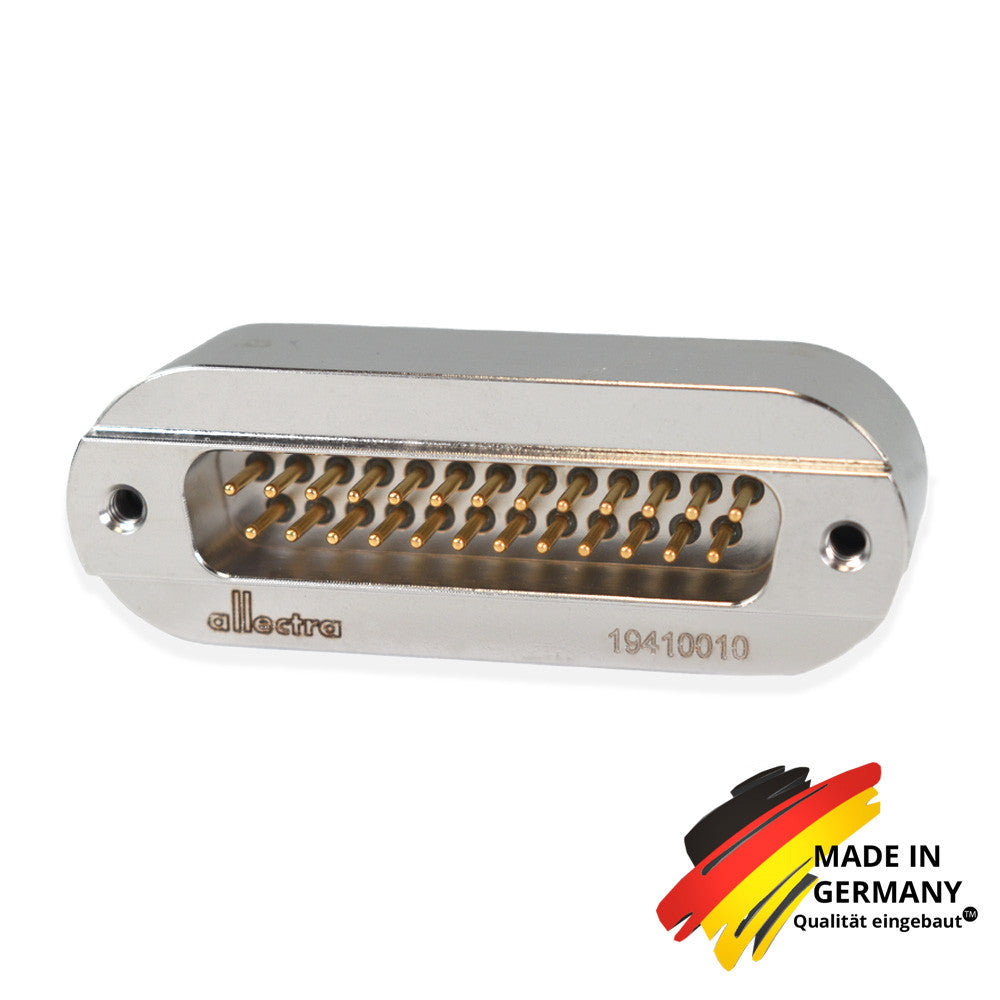

SUB-D 25-WAY WELDABLE FEEDTHROUGH

Allectra SKU: 218-D25-SS
SUB-D 25-WAY WELDABLE FEEDTHROUGH

SUB-D 25-WAY WELDABLE FEEDTHROUGH

Allectra SKU: 218-D25-SS
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Allectra Sub miniature D feedthroughs meet the DIN 41652 / MIL-C-24308 standards, they have D shaped male connections on both air and vacuum side. The gold-plated Ni/Fe alloy pins are glass-ceramic insulated and rated to 500V at a maximum current of 5A per pin or 3A per pin continuous use

Specifications

  • Vacuum Leak Rate <1x 10-9 mbar l/s (as a weldable)
  • Size or DN Weld
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 25
  • Conductor Diameter 1mm
