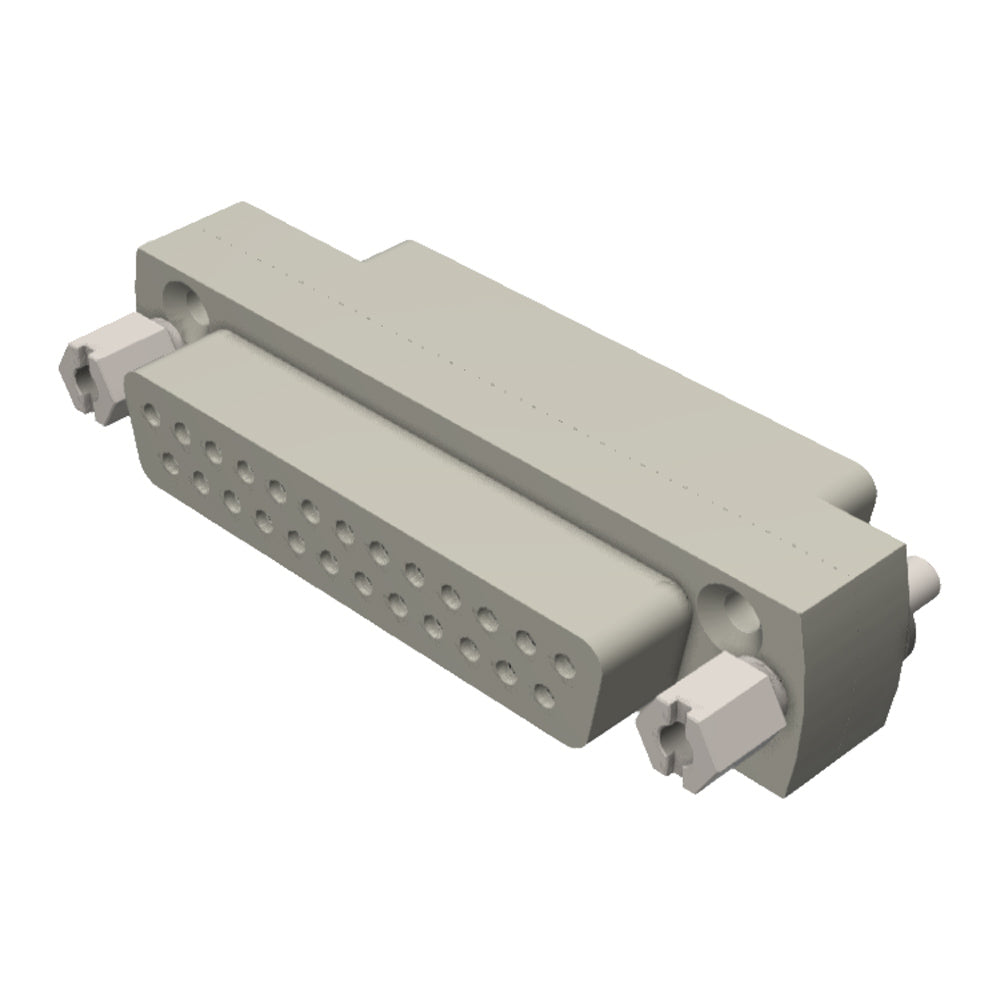

SUB-D 25 WAY GENDER ADAPTOR, PEEK, VACUUM SIDE, FEMALE TO FEMALE

For in-vaccum use, Allectra offers Gender adapters for the full range of standard Sub-D feedthoughs, from 9 to 50 pin. Versions in both PEEK and ceramic are available. Together with a Sub-D feedthrough, the standard 1:1 pin connection from the air side cable to the vacuum side is established.

Specifications

• Vacuum Leak Rate UHV, <10-10 mbar
• Size or DN 25 Way
• Body Material PEEK
• Temperature Range -40 to 250°C
• Number of Pins 25
