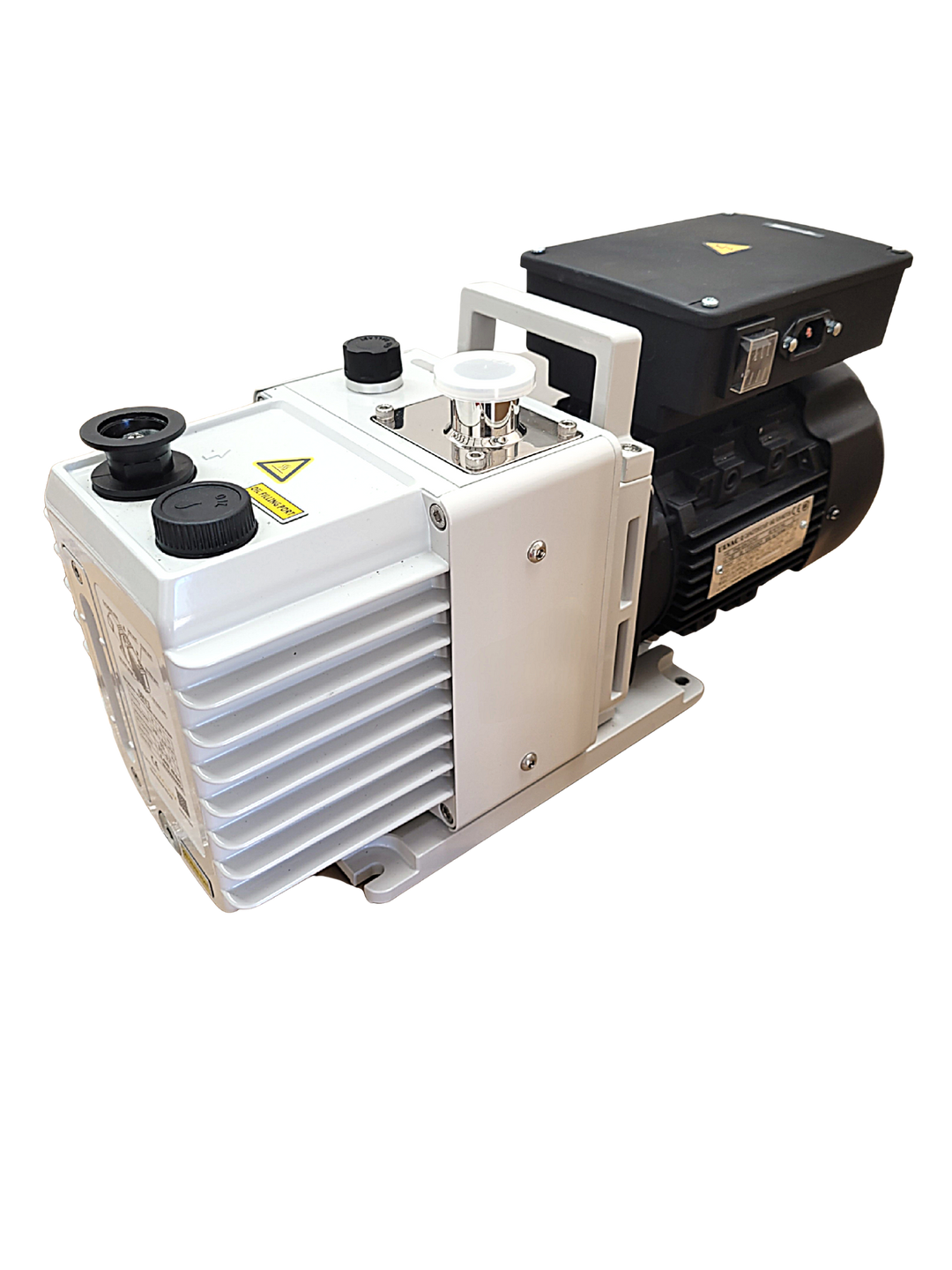

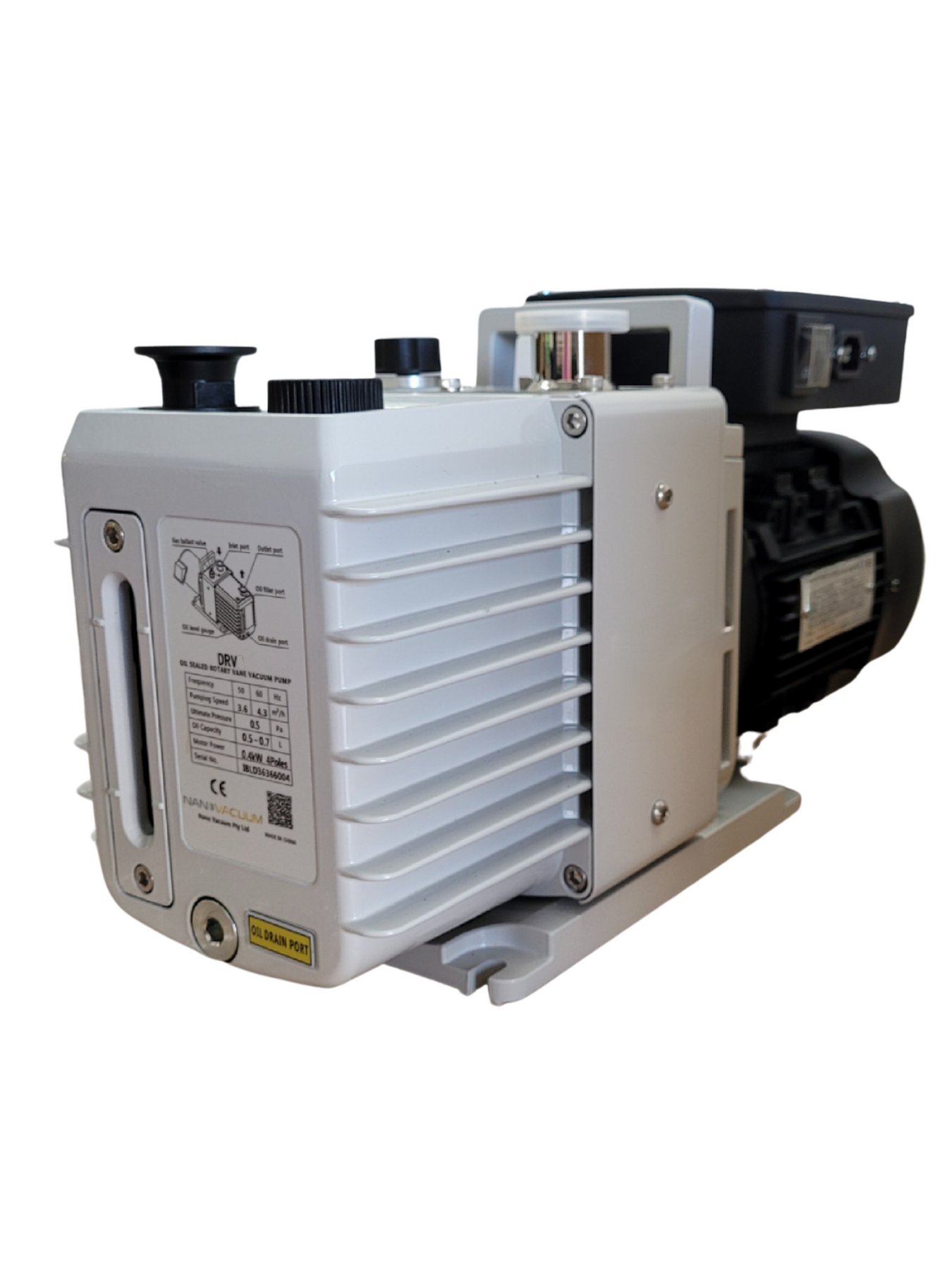

Nano Vacuum NVDRV5 Rotary Vane Laboratory Vacuum Pump

Nano Vacuum SKU: NVDRV5
Nano Vacuum DRV10 Rotary Vane Laboratory Vacuum Pump - Nano Vacuum Australia & New Zealand
Nano Vacuum DRV10 Rotary Vane Laboratory Vacuum Pump - Nano Vacuum Australia & New Zealand

Nano Vacuum NVDRV5 Rotary Vane Laboratory Vacuum Pump

Nano Vacuum SKU: NVDRV5
Regular price $1,900.00
/
Only 5 items in stock!
  • Worldwide shipping
  • Free returns
  • Price promise
  • Secure payments

The Nano Vacuum DRV Series Rotary Vane Vacuum Pumps are rugged oil sealed high vacuum laboratory pumps suitable for a variety of applications including schlenk lines, distillation, rotary evaporation, freeze drying, gloveboxes, molecular evaporation, separation, filtration, analytical instruments and many more....

The DRV pumps include:

  • Non-spring rotary vane design to achieve low noise, low vibration and long service life
  • Integrated oil check valve to prevent backstreaming into your process
  • Direct injection oil pressure lubrication for low maintenance and long service lifetime
  • Modular design for easy assembly/disassembly and maintenance access
  • Quiet motor for a comfortable lab environment

    Technical Specifications:

     Peak Pumping Speed:

    5.4 m^3/hr

    Ultimate Pressure (Total):

    5.0 x 10^-3 mbar (50Hz)

    Noise

    <54dBA

    Inlet/Outlet Flange:

    NW25 KF

    Motor Type:

    1ph 230V, 50Hz
