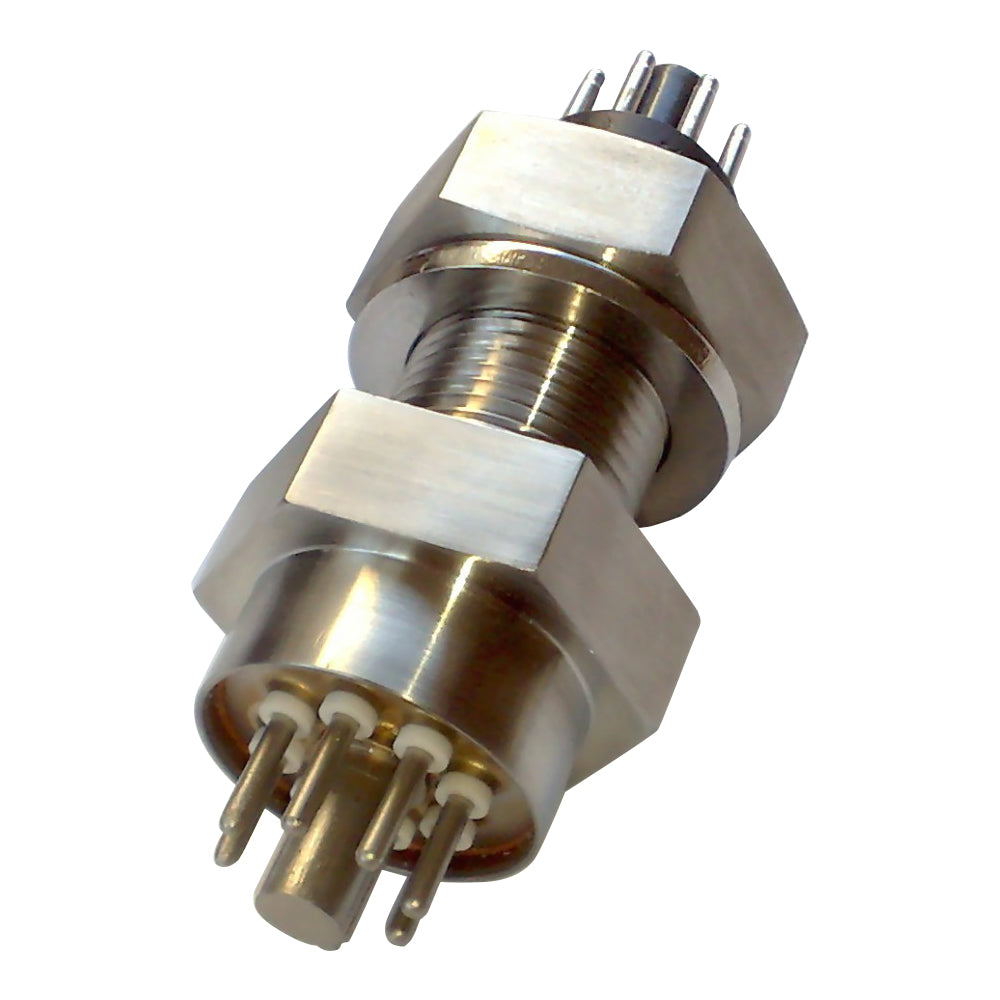

MULTIPIN 'OCTAL' FEEDTHROUGH, 8-WAY, 1” BASEPLATE, HV & AIR SIDE OCTAL CONNECTORS

MULTIPIN 'OCTAL' FEEDTHROUGH, 8-WAY, 1” BASEPLATE, HV & AIR SIDE OCTAL CONNECTORS

Allectra SKU: 221-005OCT1KV-8-BP
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Additional baseplate types available on request

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN 1” baseplate
  • Compliance 1” Octal base
  • Vacuum Seal Viton O ring
  • Body Material Ceramic/ Stainless Steel
  • Voltage Rating 1kV
  • Max Current 5Amps per pin
  • Temperature Range -20°C to 150°C
  • Number of Pins 8
