HB10 Auto Z-Axis Thermosonic Wire Bonder - Wedge & Ball Bonding

Brand: TPT

Product Code: HB10

Availability: On Request

The HB10 is a bench top size wire bonder, ideal for laboratories and pilot production lines. One bond head for bonding in ball/wedge or wedge/wedge bonding mode. Only a tool change is necessary. Z-Axis is automatic/motorised.
Easy operation with a TFT touch screen, direct access and simple adjustment of all bond parameters.

Full specifications can be found here

Gold, aluminium, silver & copper wire
Wire sizes from 17um to 75um. Ribbon sizes up to 25 x 250um

6.5" Touch Panel
6.5" Touch Panel provides easy intuitive control

Automatic bond height adjustment
Z-axis sensor identifies touch down & sets the height parameters

Motorised Wire Clamp
Precise tail length control

Wedge, ball & ribbon bonding
Easy to switch between bonding modes

Storage of 100 parameters
Easy setting recall for working on different applications

Motorised Wire Spool
For consistent looping

Extension kit compatibility
Pick & Place, Pull Tester, Video Targeting and Copper Ball Bonding

Compact design & intuitive control
The bonder's practical design ensures smooth and easy use

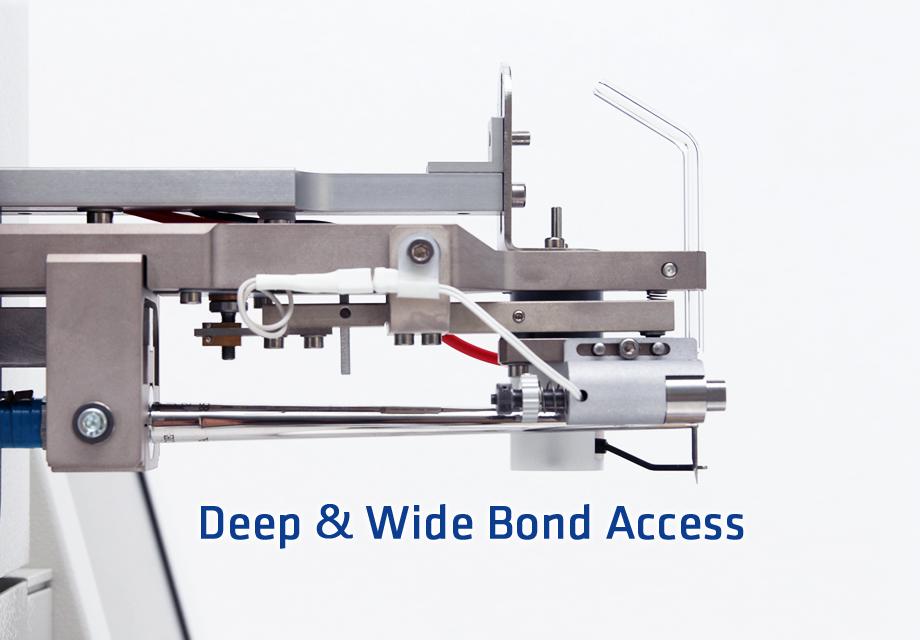

Deep & wide access
Ample workspace due to the special bond head design
