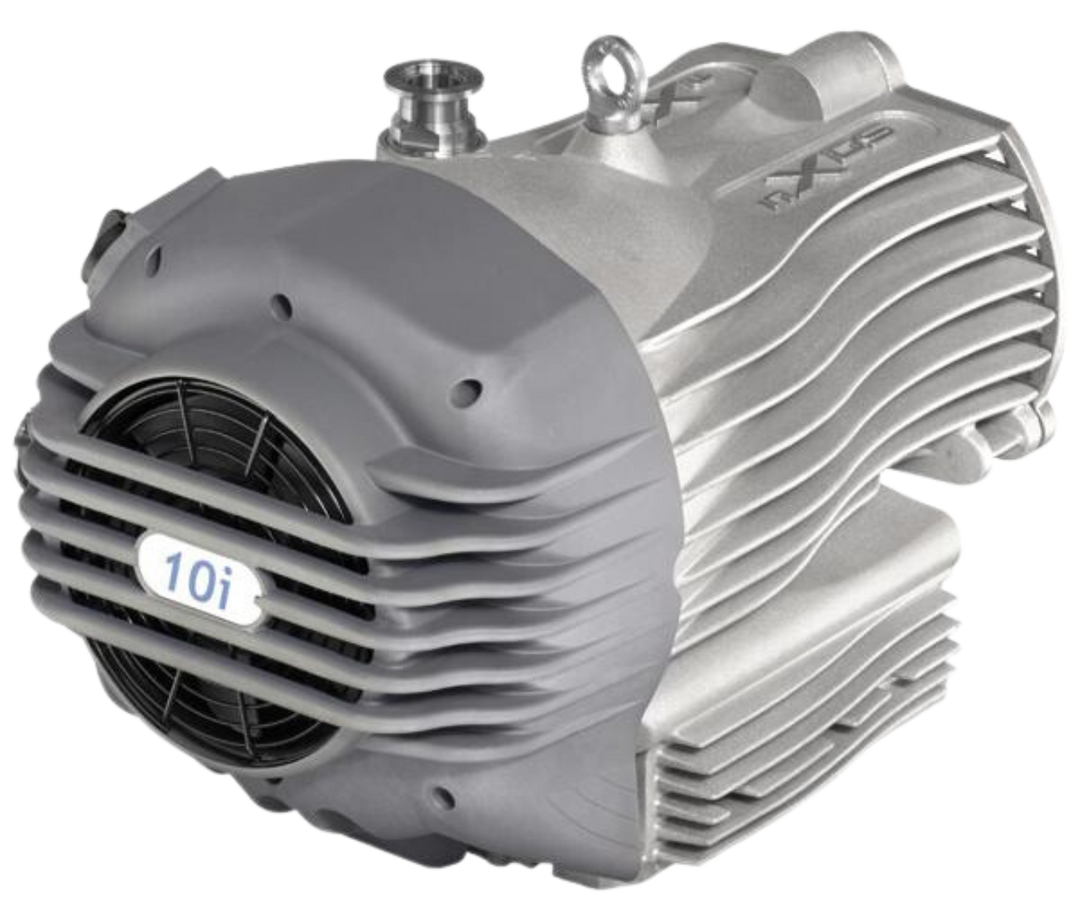

Edwards nXDS10i Scroll Dry Vacuum Pump (1ph Motor 100-240V, 50/60Hz)

Brand: Edwards Vacuum

Product Code: A73601983

Availability: In stock

$7,197.00 $5,847.75 5,847.75

***Price Promise - We will beat any price Guaranteed!***

With exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features Edwards nXDS is the best performing pump in its class.

nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise - up to 20 times quieter than other pumps. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimised pumping performance globally.

nXDS pumps are designed to be completely field serviceable. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies.

  • Better Work Environment & Low Environmental Impact:
    Quiet Operation
  • Simple Operation:
    Intelligent & Easy to Use Controls
  • No Contamination & No Oil to Dispose Of:
    Hermetically Sealed for a Lubricant-Free Vacuum Environment
  • Low Cost of Ownership:
    Long Service Interval & Low Power Consumption
  • Quicker Process:
    Superior Vapour Handling
Key Features & Benefits

    Download The nXDS Scroll Pump Series Brochure Here

     Technical Specifications:

     Peak Pumping Speed:

    11.4 m^3/hr / 6.7 cfm

    Ultimate Pressure (Total):

    7.0 x 10^-3 mbar (50Hz) / 5.0 x 10^-3 Torr (60Hz)

    Water Vapour Capacity:

    145 g/h

    Inlet/Outlet Flange:

    NW25 KF

    Motor Type:

    1ph 110-240V, 50/60Hz

    Part Number: A73601983
