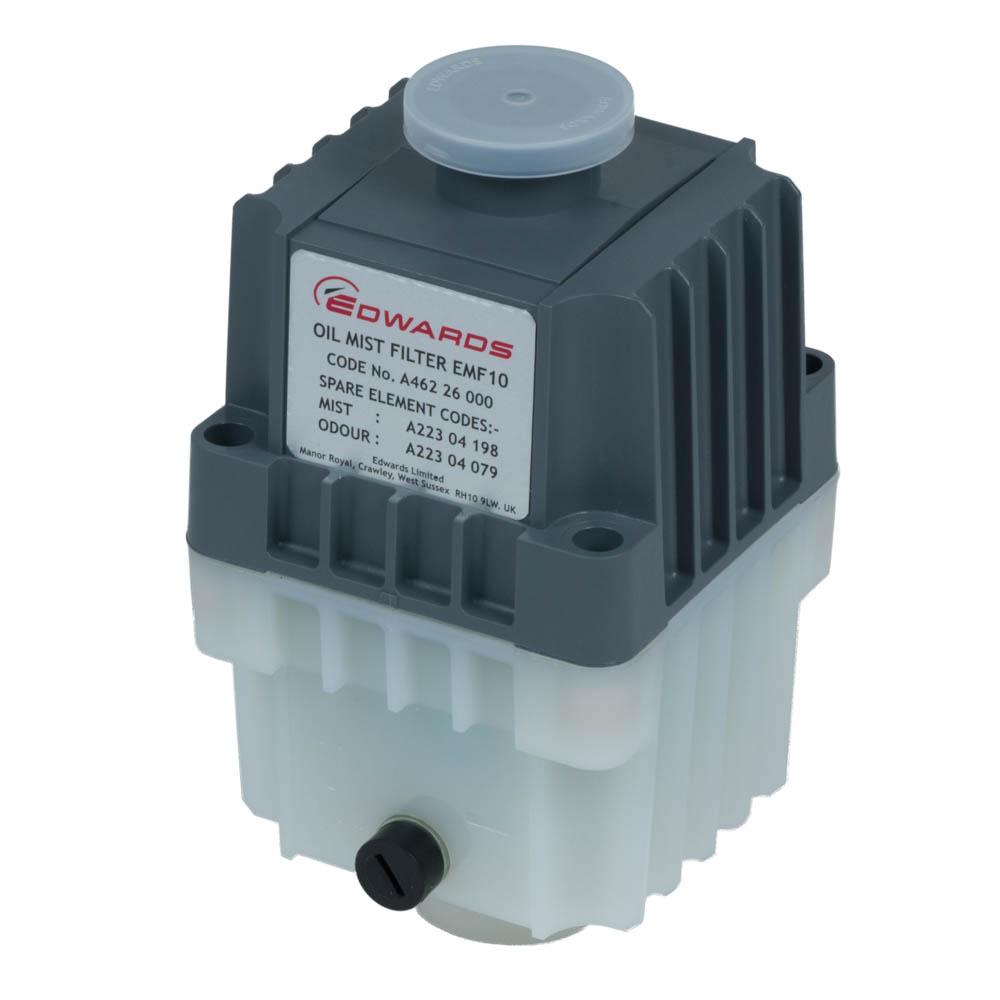

Edwards EMF10 Oil Mist Filter For RV3, RV5, RV8, RV12 Vacuum Pumps

Brand: Edwards Vacuum

Product Code: A46226000

Availability: In stock

BRAND NEW Edwards EMF10 Oil Mist Exhaust Filter, KF25 Ports, Designed for Edwards for RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12 Vacuum Pumps (A46226000)

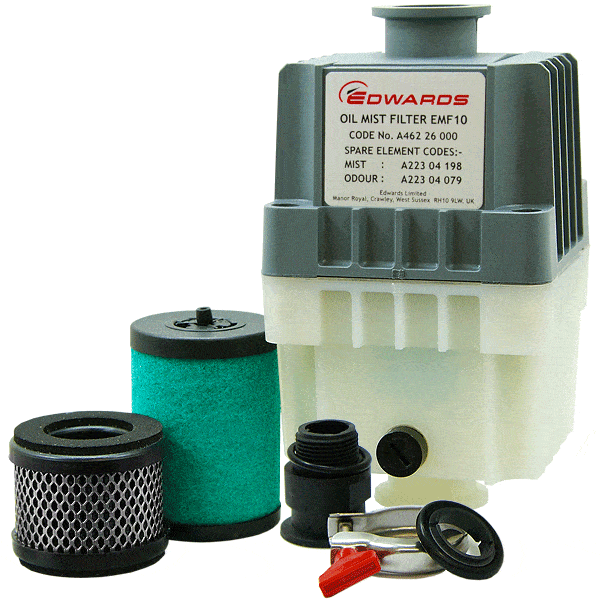

This EMF Outlet Oil Mist Filter is suitable for all Edwards Rotary Vane pumps up to E2M18. This EMF10 EMF-10 exhaust filter assembly is supplied with NW25 clamp, centering ring, O-Ring, NW25 to 3/4 BSP adaptor, 1 oil element filter and 1 odour element. The benefits of the oil mist filter includes: protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. The white bottom half of the body is semi-transparent, allowing the oil level to be monitored.

Edwards EMF10 (EMF-10) Oil Mist Filter Specifications:
Fits Pump ModelsRV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12
Inlet & Exhaust FlangesISO KF25 (NW25)
DimensionsHeight 7.5 x Width 5 inches
Weight1.5 lb
Material: Durable Plastic Body
Oil Filter Element: Epoxy Impregnated Glass Fiber
Replacement Oil Filter Part Number: A223-04-198
Edwards EMF10 (EMF-10) Part Number: A462-26-000
