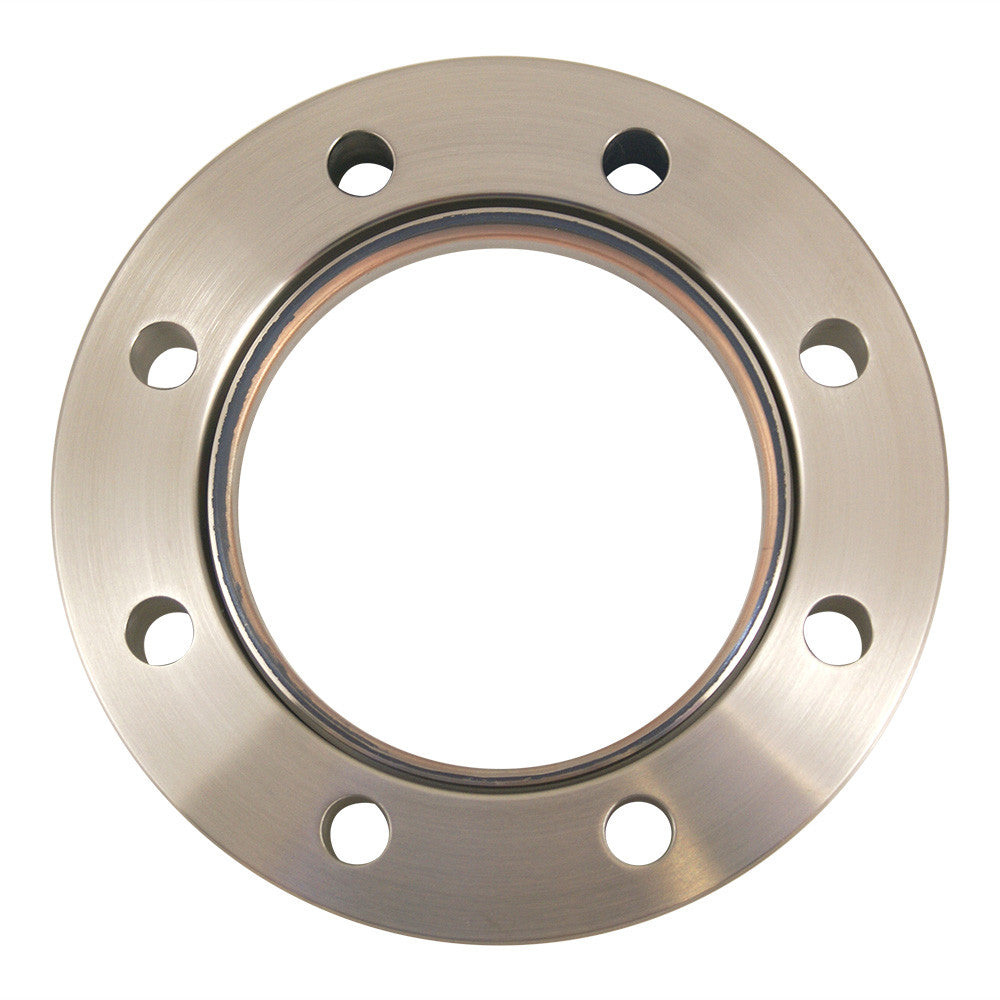

DN63CF UV GRADE FUSED SILICA VIEWPORT FOR 780nm DIODE LASER

DN63CF UV GRADE FUSED SILICA VIEWPORT FOR 780nm DIODE LASER

Allectra SKU: 110-DIODE-C63
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Laser damage threshold 10J/cm2 for 10ns pulse

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN63CF (4 ½ " OD flange)
  • Compliance ISO 3669:2017
  • Vacuum Seal Annealed Cu Gasket
  • Body Material Stainless Steel 304
  • Temperature Range -100°C to 200°C
  • Transmission 780nm
  • Inside Diameter 68mm
  • Flatness λ/4 @632nm
  • Coating V-coat with <0.25% reflection/surface
  • Parallelism <10 arc sec
  • Surface Finish 20/10 Scratch/Dig
  • Optical Material UV grade fused silica
