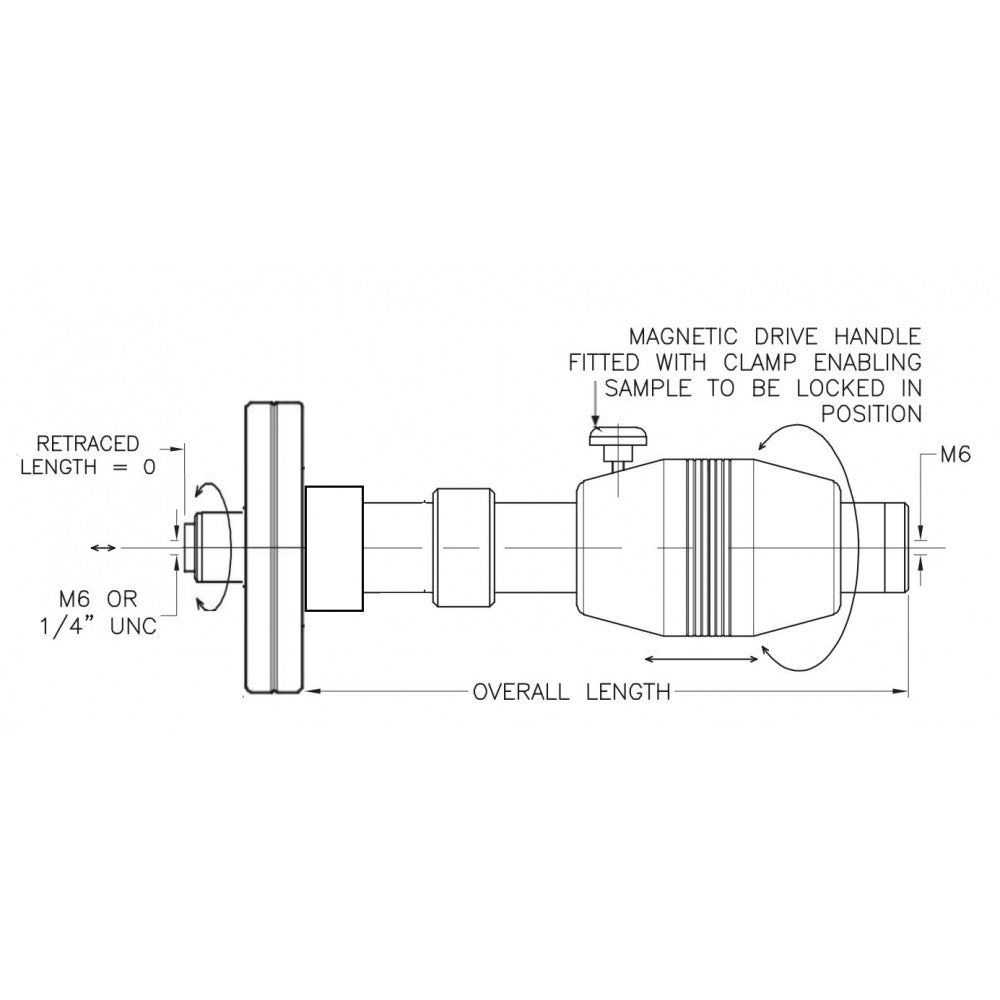

DN63CF MAGNETIC LINEAR AND ROTARY MOTION DRIVE, TRAVEL 610mm

Allectra SKU: ZMLRV406
DN63CF MAGNETIC LINEAR AND ROTARY MOTION DRIVE, TRAVEL 610mm

DN63CF MAGNETIC LINEAR AND ROTARY MOTION DRIVE, TRAVEL 610mm

Allectra SKU: ZMLRV406
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Magnetically couples linear and rotary motion • High powered magnets allows drives to be horizontally or vertically mounted • Tactile control of simple transfer • Bakeable internal and external magnets • Complete drive bakeable to +250°C (max operating temperature 120°C) • Leak rate < 1 x 10 -11 mbar ls-1 • Pressure range 1 bar to 10 -11 mbar • Continuous rotation • Position lock

Specifications

  • Size or DN DN63CF (4 ½ " OD flange)
  • Travel 610mm
  • Max. Load Capacity 4.0 kg vertical
  • External Length 870mm
  • Probe Diameter 25.4mm
