DN63CF LINEAR Z-SHIFTER WITH HANDWHEEL, BELLOWS SEALED, 75mm TRAVEL

Allectra SKU: ZLTM11475HW
DN63CF LINEAR Z-SHIFTER WITH HANDWHEEL, BELLOWS SEALED, 75mm TRAVEL

DN63CF LINEAR Z-SHIFTER WITH HANDWHEEL, BELLOWS SEALED, 75mm TRAVEL

Allectra SKU: ZLTM11475HW
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• High precision and accuracy • 68mm clear bore edge welded bellows • Smooth operating • Graduated scale in 1mm increments • Operating temperature range -20°C to +200°C • Fully bakeable to 250°C • Top flange is M8 tapped, lower flange is clear bore. • Positive stops at extremes of movement • Operating pressure 1 bar to 10-11 mbar • Leak rate 1x10-10 mbar ls-1

Specifications

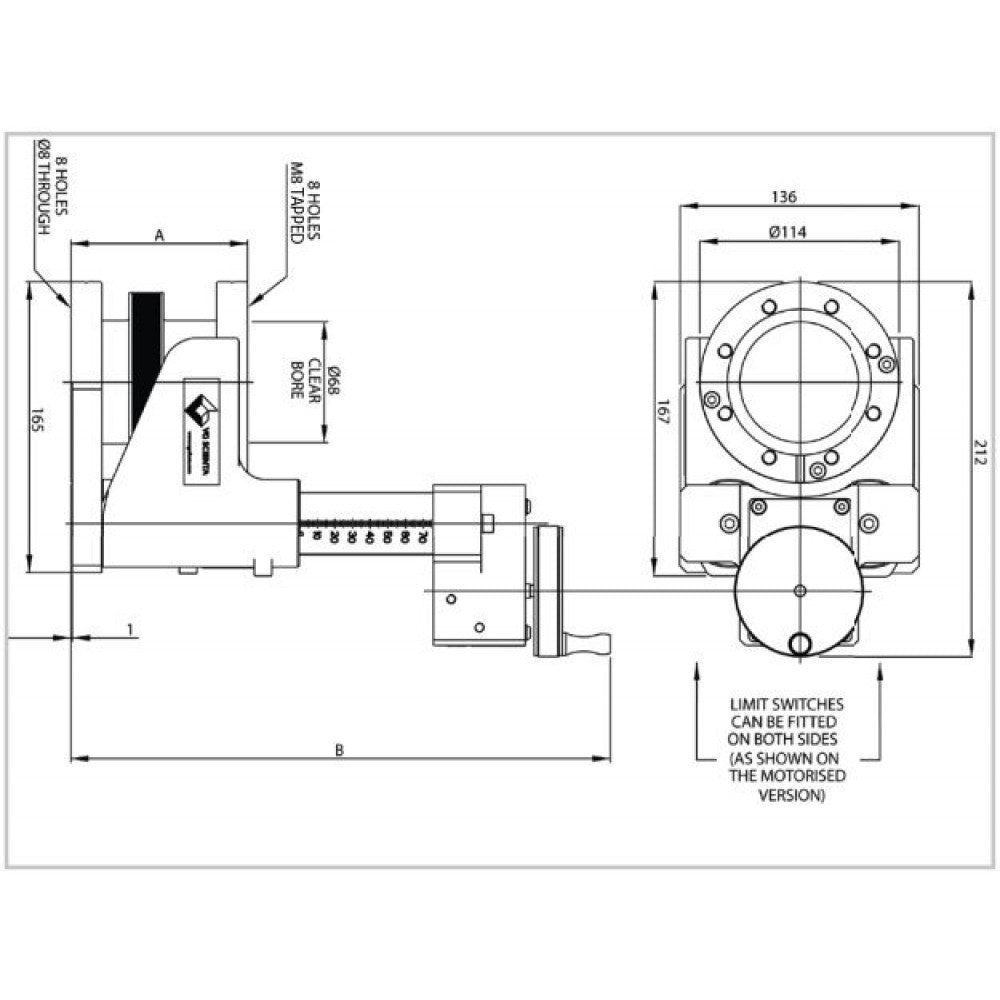

  • Size or DN DN63CF (4 ½ " OD flange) (TAPPED)
  • Dimension A 175mm (extended) 100mm (compressed)
  • Operation Manual
  • Travel 75mm
