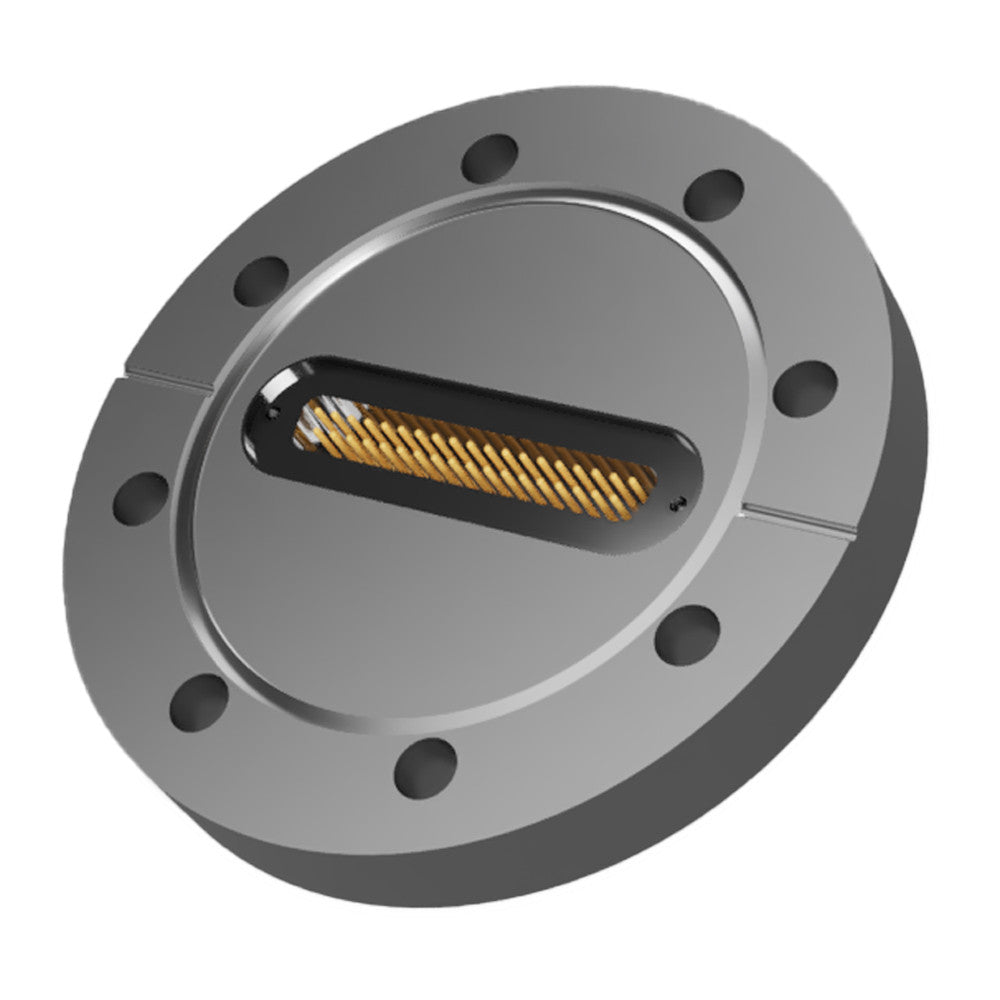

DN63CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV

Must be used with 490-CG72 Copper Gasket

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN63CF (4 ½ " OD flange)
• Compliance Sub-D, DIN 41652, MIL-C-24308
• Pin Gender male
• Conductor Material NiFe (Au plated)
• Vacuum Seal Glass ceramic
• Body Material Stainless Steel 316L
• Voltage Rating 500V DC
• Max Current 5A per pin
• Temperature Range -200°C to 230°C
• Number of Pins 37
• Conductor Diameter 1mm
