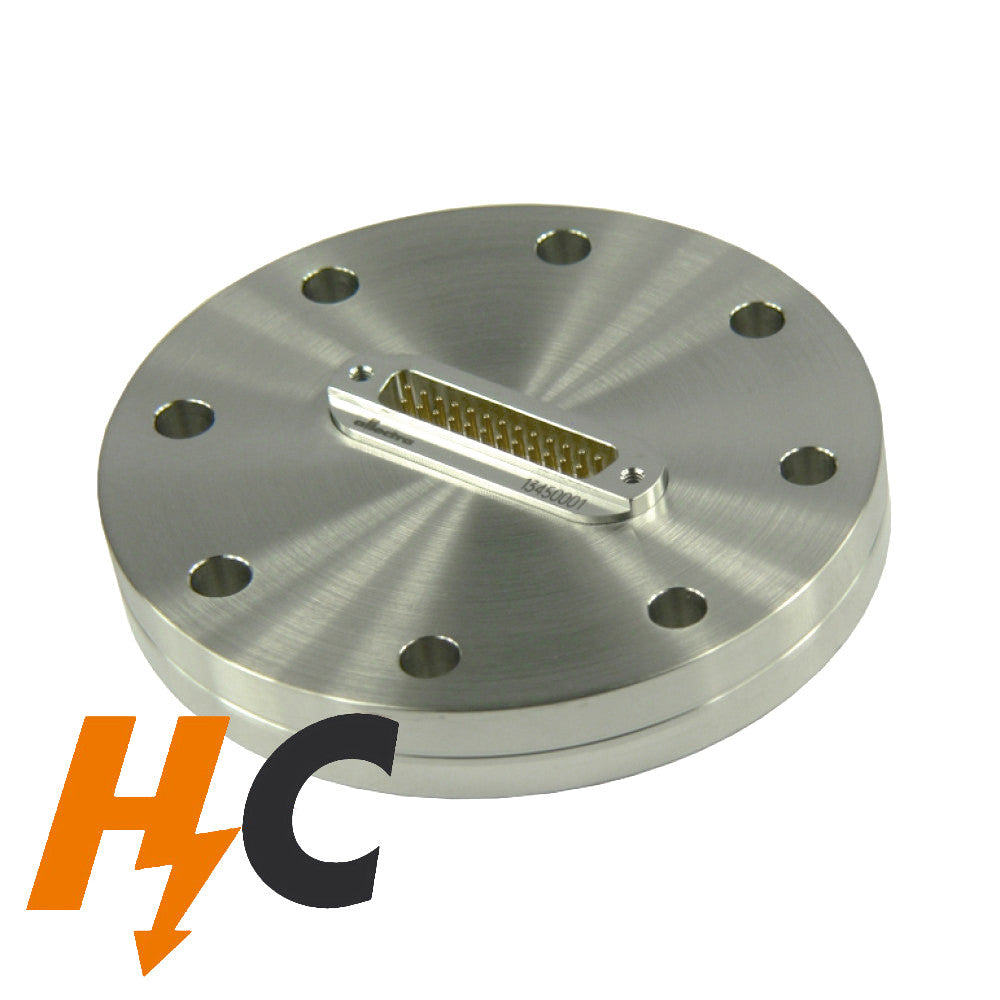

DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A

Allectra SKU: 210-D25-C63-HC
DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A

DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A

Allectra SKU: 210-D25-C63-HC
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Vacuum socket 211-FS25-PK & 212-PINF-25-HC

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN63CF (4 ½ " OD flange)
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 6A per pin all loaded, 10A for 5 minutes
  • Temperature Range -200°C to 230°C
  • Number of Pins 25
  • Conductor Diameter 1mm
