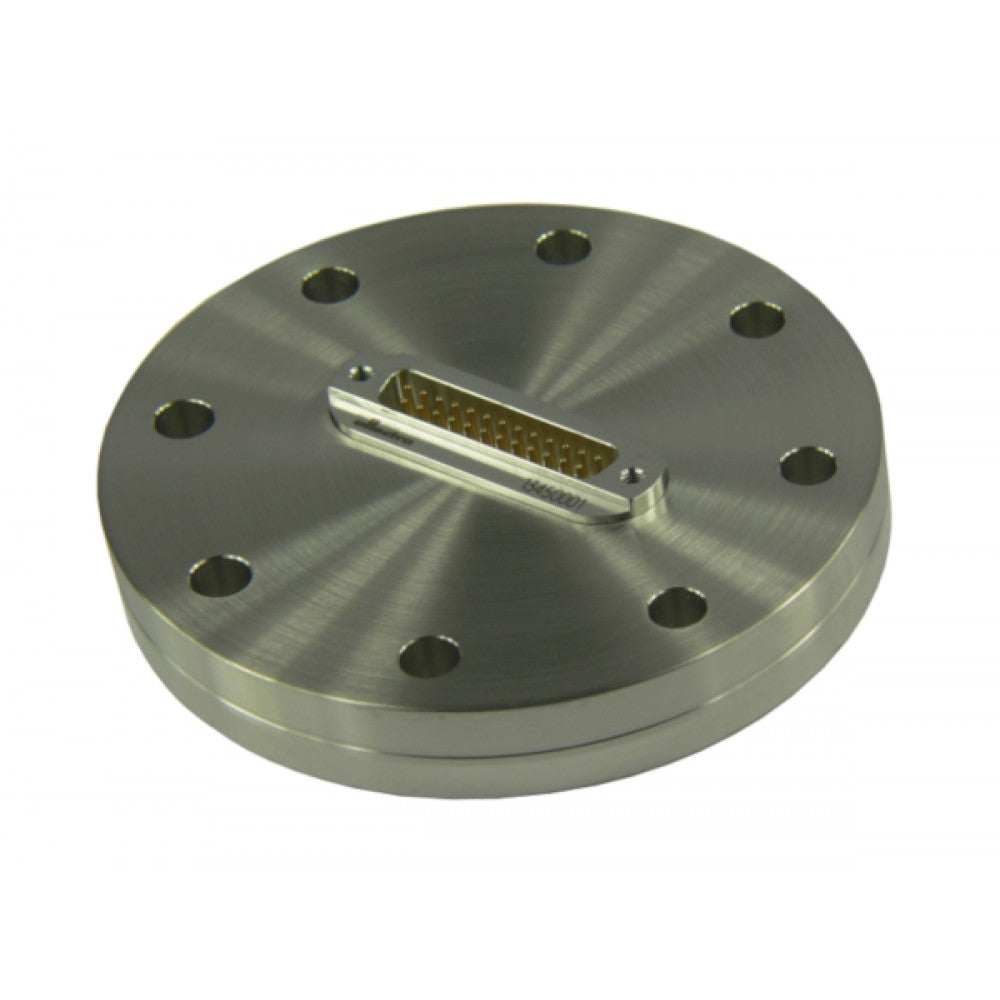

DN63CF FLANGE, SUB-D 25-WAY FEEDTHROUGH, UHV

Vacuum socket 211-FS25-PK & 211-FS25-UHV

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN63CF (4 ½ " OD flange)
• Compliance Sub-D, DIN 41652, MIL-C-24308
• Pin Gender male
• Conductor Material NiFe (Au plated)
• Vacuum Seal Glass ceramic
• Body Material Stainless Steel 316L
• Voltage Rating 500V DC
• Max Current 5A per pin
• Temperature Range -200°C to 230°C
• Number of Pins 25
• Conductor Diameter 1mm
