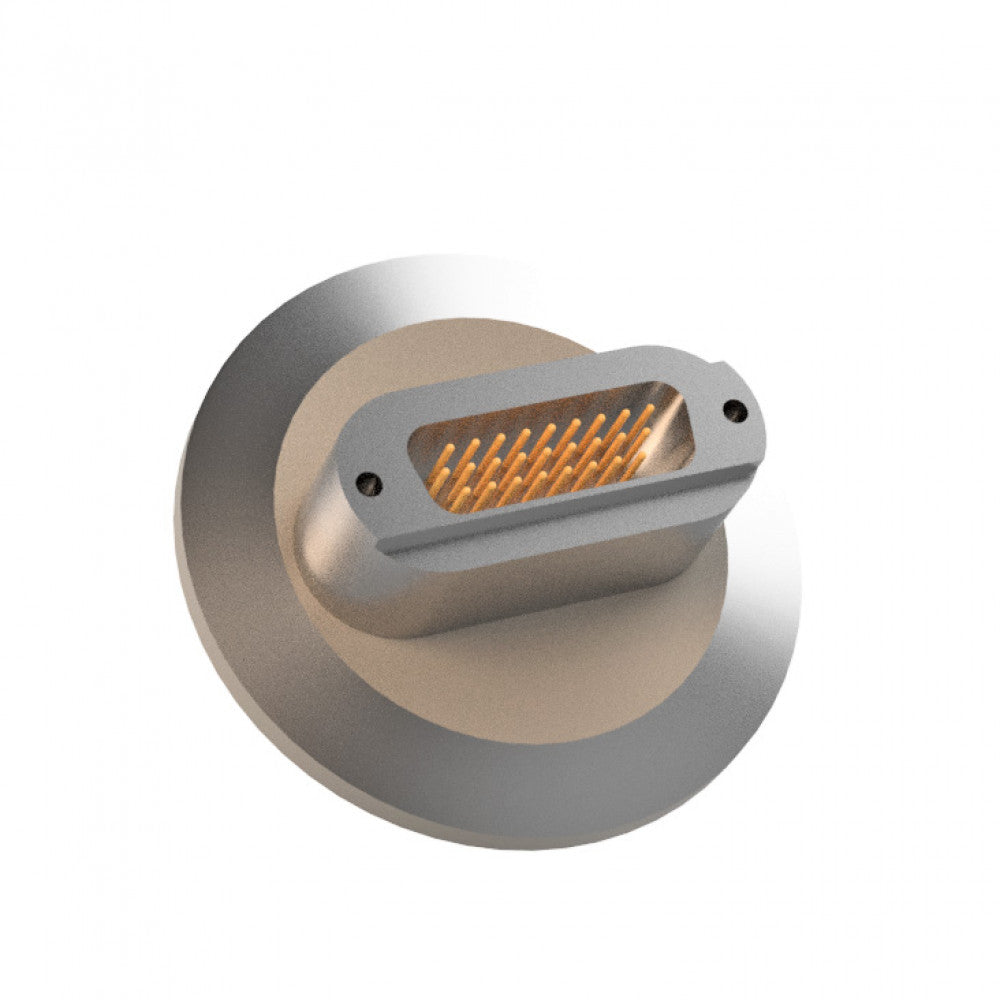

DN50KF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH

DN50KF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH

Allectra SKU: 210-HD26-K50
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate HV SUB-D <1x10-8 mbar l/s
  • Size or DN DN50KF
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 3A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 26
  • Conductor Diameter 0.7mm
