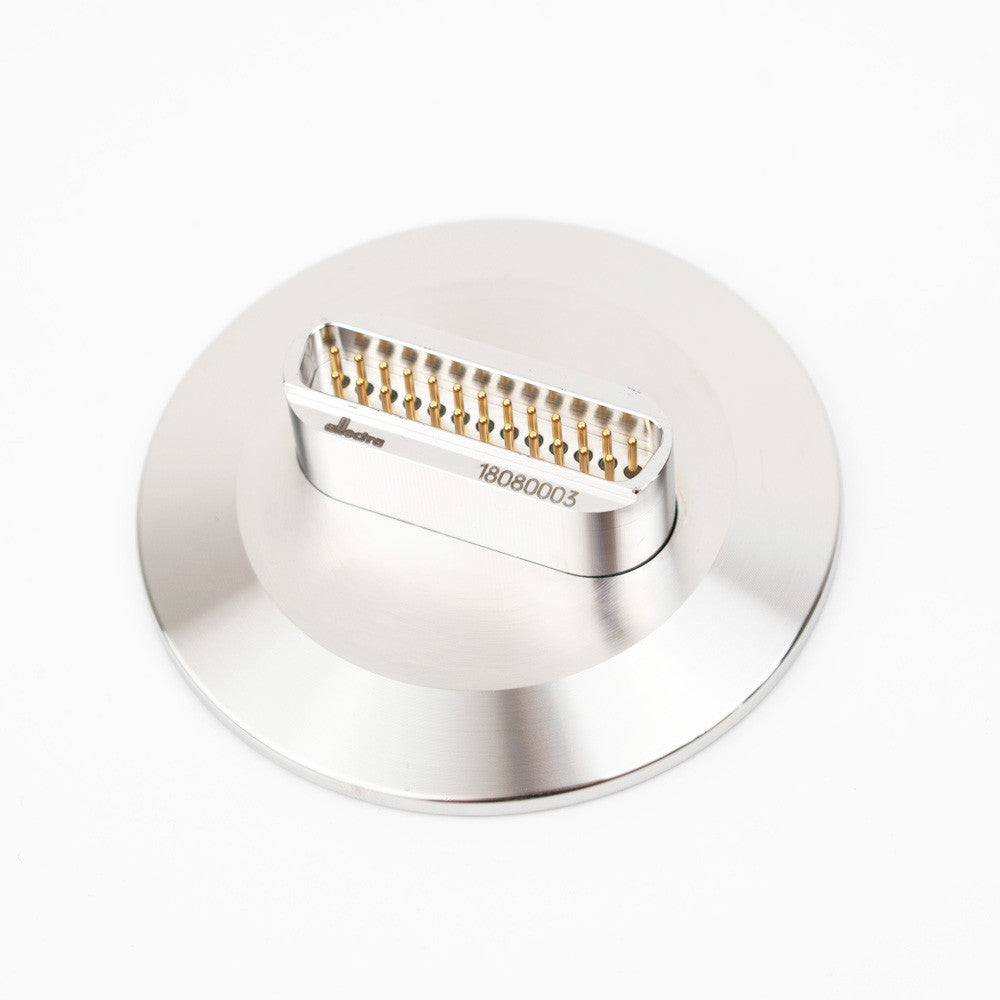

DN50KF FLANGE, SUB-D 25-WAY FEEDTHROUGH

Allectra SKU: 210-D25-K50
DN50KF FLANGE, SUB-D 25-WAY FEEDTHROUGH

DN50KF FLANGE, SUB-D 25-WAY FEEDTHROUGH

Allectra SKU: 210-D25-K50
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Use vacuum socket 211-FS25-HV-SX

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN50KF flange
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -40°C to 200°C
  • Number of Pins 25
