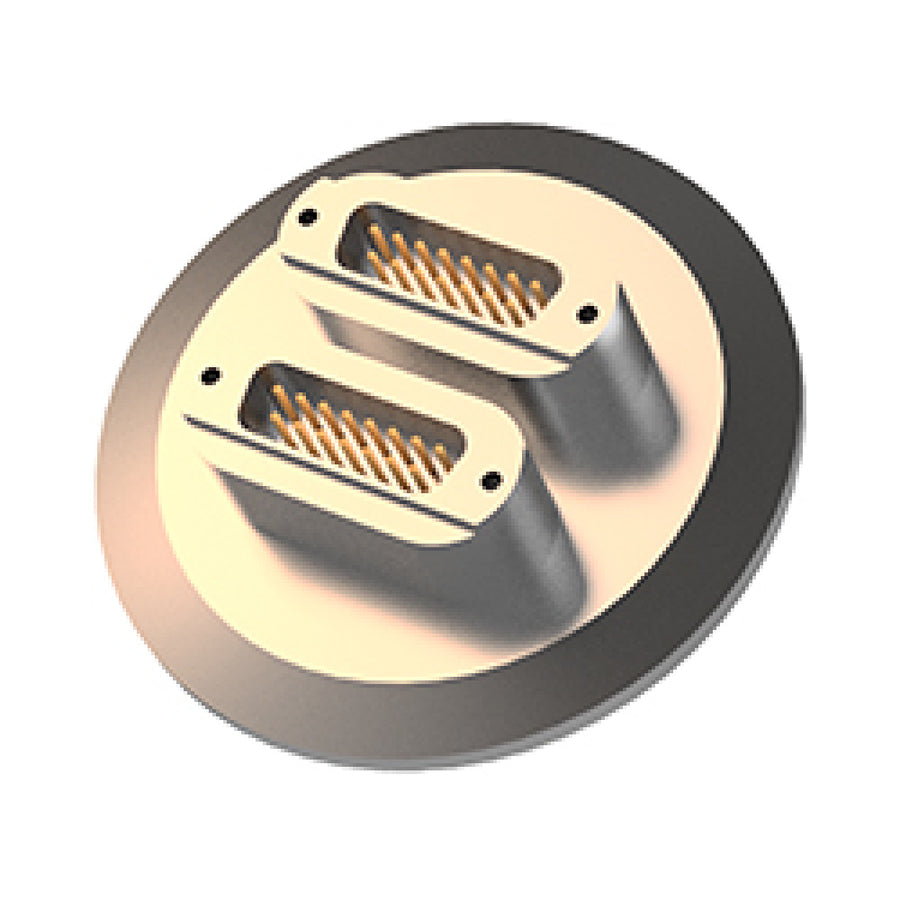

DN50KF FLANGE, 2 X SUB-D 15-WAY FEEDTHROUGH

Allectra SKU: 210-D15-K50-2
DN50KF FLANGE, 2 X SUB-D 15-WAY FEEDTHROUGH

DN50KF FLANGE, 2 X SUB-D 15-WAY FEEDTHROUGH

Allectra SKU: 210-D15-K50-2
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate HV SUB-D <1x10-8 mbar l/s
  • Size or DN DN50KF flange
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender Male
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -40°C to 200°C
  • Number of Pins 15 Per Feedthrough
  • Conductor Diameter 1mm
