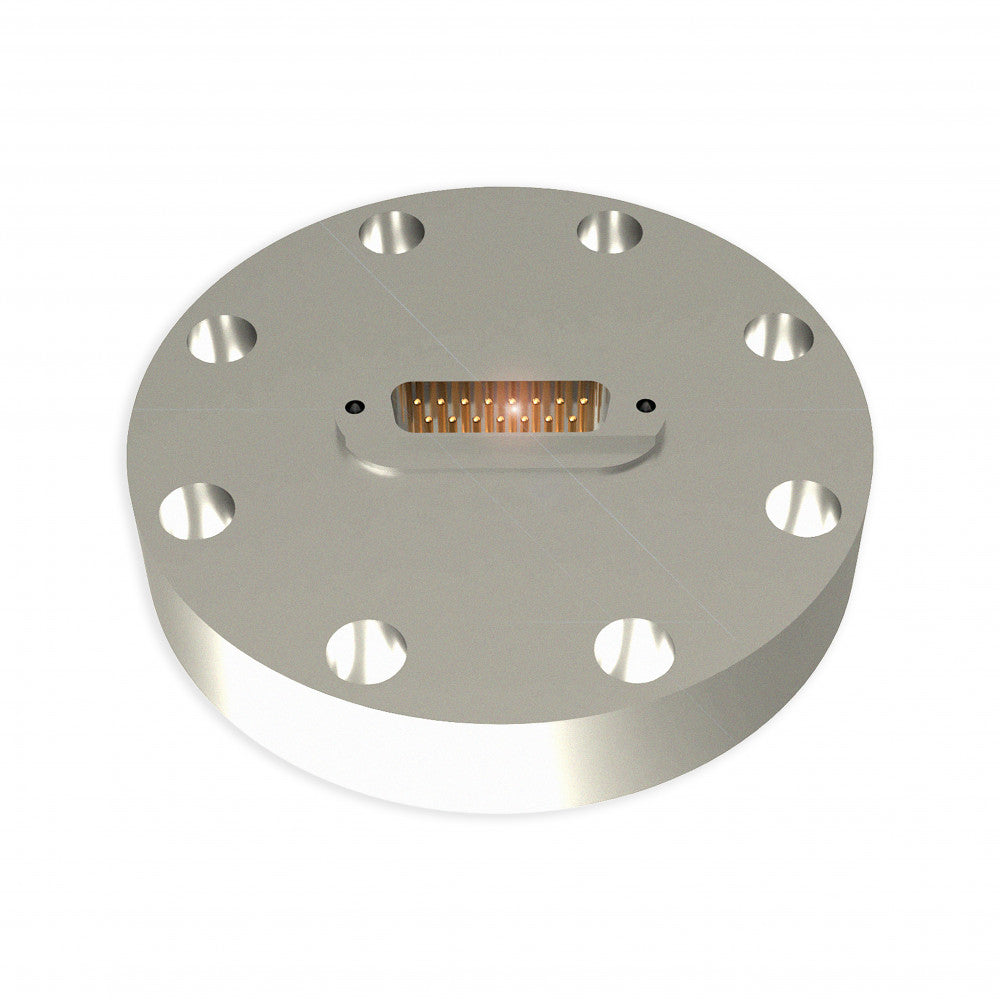

DN50CF FLANGE, SUB-D 15-WAY FEEDTHROUGH, UHV

• Electronics industry standard sub-miniature D system. • These Allectra Feedthroughs have D-shaped connectors on both airside and vacuum-side and meet MIL-DTL-83513/2 interface standard on the atmosphere side. • Pins are ceramic insulated and rated for 500V DC. • Maximum Current is 5A per pin (short period) 3A per pin continuous.

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN50CF (3 3/8” OD flange)
• Compliance Sub-D, DIN 41652, MIL-C-24308
• Pin Gender Male
• Conductor Material NiFe (Au plated)
• Vacuum Seal Glass ceramic
• Voltage Rating 500V DC
• Max Current 5A per pin (short) 3A per Pin continuous
• Temperature Range -200°C to 230°C
• Number of Pins 15
• Conductor Diameter 1mm
