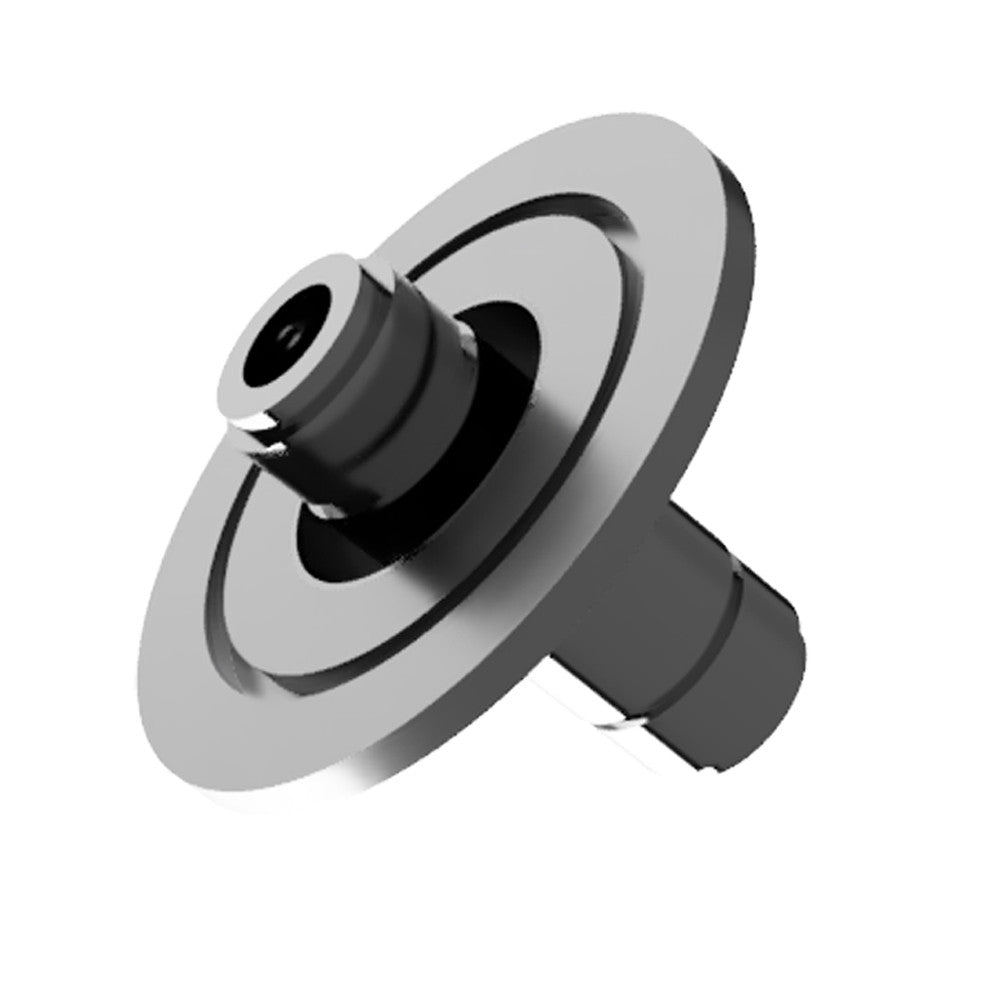

DN40KF TYPE N FEEDTHROUGH, 50 Ohm, 3KV, DOUBLE SIDED, INCLUDING AIR SIDE RG213 SOCKET
Allectra
SKU: 242-ND50-K40
• Pin Ø 2.44mm / Standard Type N • Air side connector included
Specifications
- Vacuum Leak Rate UHV <5x10-10 mbar l/s
- Size or DN DN40KF
- Compliance N type 50 ohm
- Body Material Stainless Steel
- Voltage Rating 3 KV
- Max Current 5A per pin
- Temperature Range -200°C to 300°C (Air side Connector -65°C to 165°C)
- Impedance 50 ohms
- Number of Pins 1
