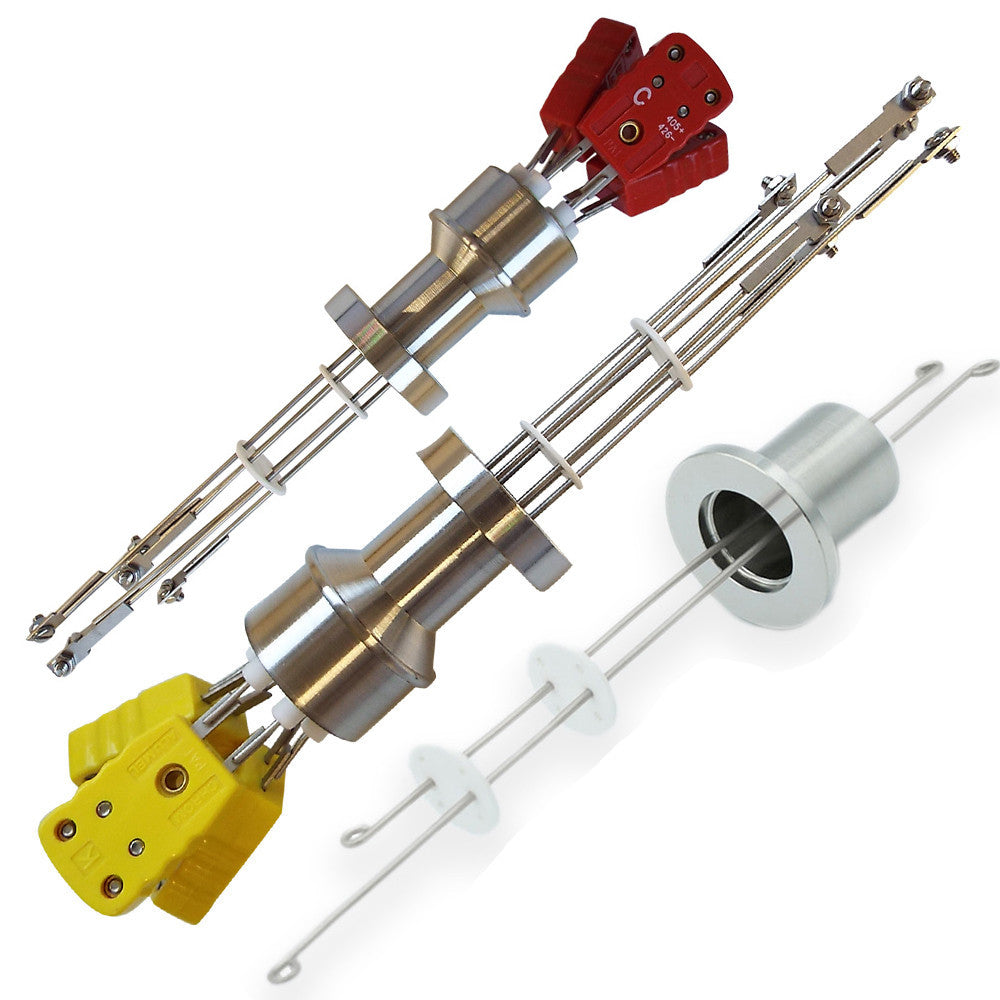

DN40KF THEROCOUPLE FEEDTHROUGH, TYPE K, 4 PAIRS, AIR & VACUUM-SIDE CONNECTORS

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Chromel) is shorter than the (-) pole (Alumel) • Miniature thermocouple connectors are included for the air side. • Type K thermocouple temperature range: -200oC to 1200oC

Specifications

• Vacuum Leak Rate HV <1x10-8 mbar l/s
• Size or DN DN40KF flange
• Compliance Type K thermocouple
• Conductor Material .
• Body Material Stainless Steel/Ceramic
• Temperature Range -100°C to 450°C (Air side Connector -65oC to 165oC)
• Number of Pins 8
