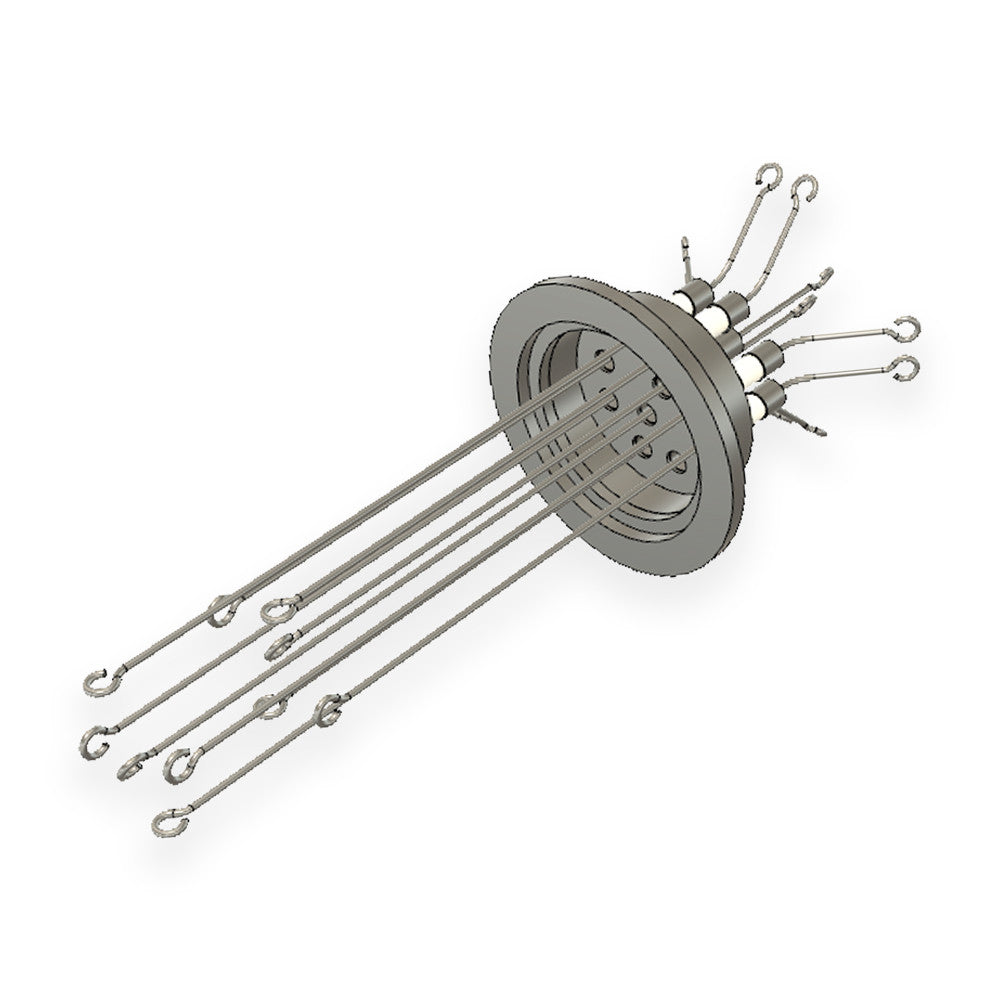

DN40KF THERMOCOUPLE FEEDTHROUGH, TYPE N, 5 PAIRS, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCN-5-K40
DN40KF THERMOCOUPLE FEEDTHROUGH, TYPE N, 5 PAIRS, AIR & VACUUM-SIDE CONNECTORS

DN40KF THERMOCOUPLE FEEDTHROUGH, TYPE N, 5 PAIRS, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCN-5-K40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Nicrosil) is shorter than the (-) pole (Nisil) • Screw connector included for the air side. • Type N thermocouple temperature range: -250oC to 1300oC

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN40KF flange
  • Compliance Type N thermocouple
  • Conductor Material .
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -200°C to 450°C
  • Number of Pins 10
