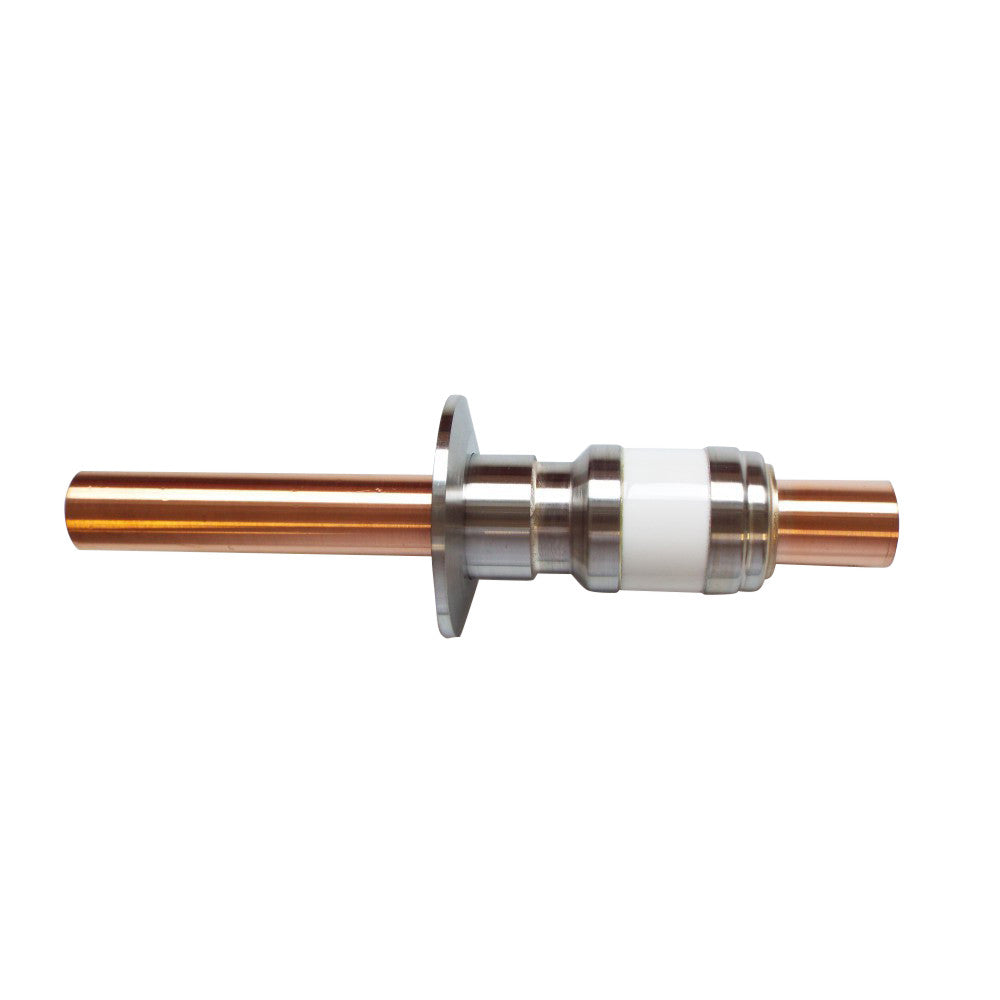

DN40KF POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 800A, PIN ⌀ 19.05mm

Allectra SKU: 261-190CU8K-K40
DN40KF POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 800A, PIN ⌀ 19.05mm

DN40KF POWER FEEDTHROUGH, COPPER CONDUCTOR, 1 PIN, 8KV DC, 800A, PIN ⌀ 19.05mm

Allectra SKU: 261-190CU8K-K40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Multi-pin versions available on request

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN40KF flange
  • Compliance Power feedthrough
  • Conductor Material COPPER
  • Body Material Stainless Steel/Ceramic
  • Voltage Rating 8 kV DC
  • Max Current 800 Amps
  • Temperature Range -100°C to 450°C
  • Number of Pins 1
