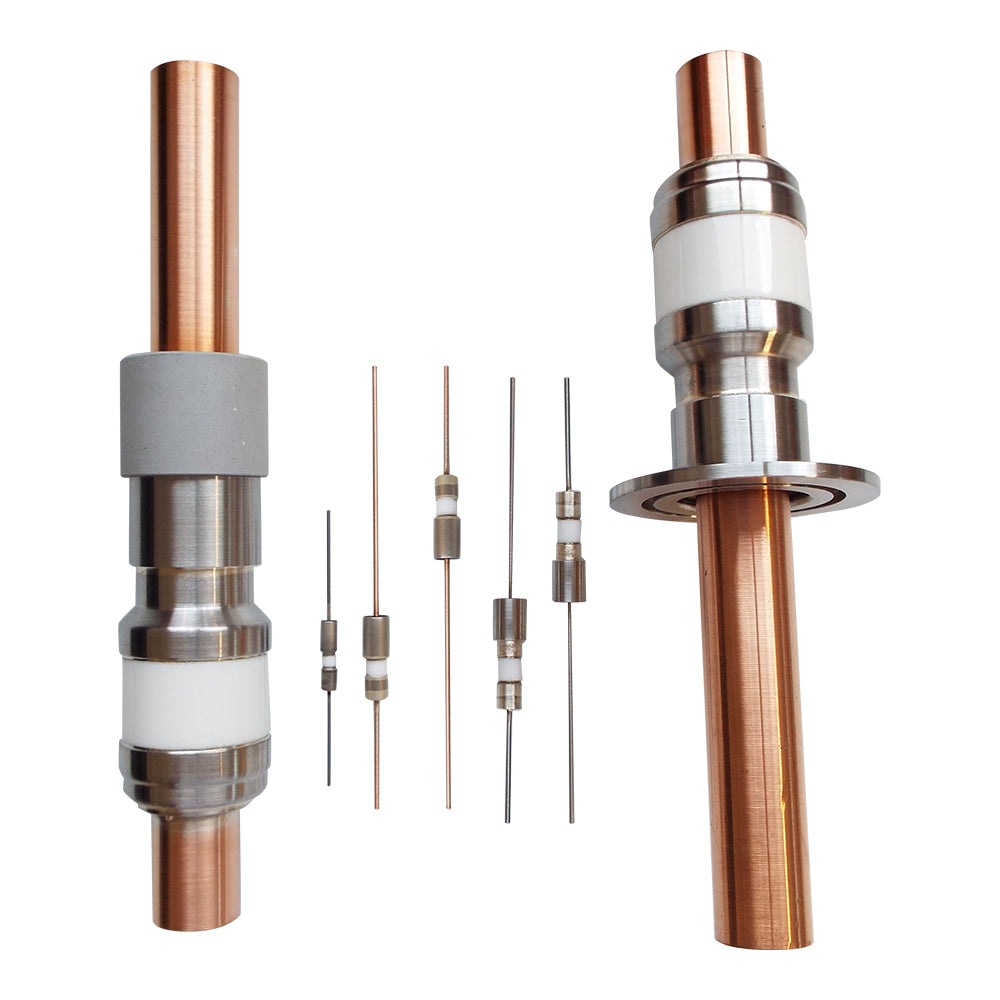

DN40KF POWER FEEDTHROUGH, 12x COPPER CONDUCTORS, 5KV, 50A

Allectra SKU: 264-24CU5K-12-K40
DN40KF POWER FEEDTHROUGH, 12x COPPER CONDUCTORS, 5KV, 50A

DN40KF POWER FEEDTHROUGH, 12x COPPER CONDUCTORS, 5KV, 50A

Allectra SKU: 264-24CU5K-12-K40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN40KF flange
  • Conductor Material COPPER
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 5 kV DC
  • Max Current 50 Amps per pin
  • Temperature Range -100°C to 450°C
