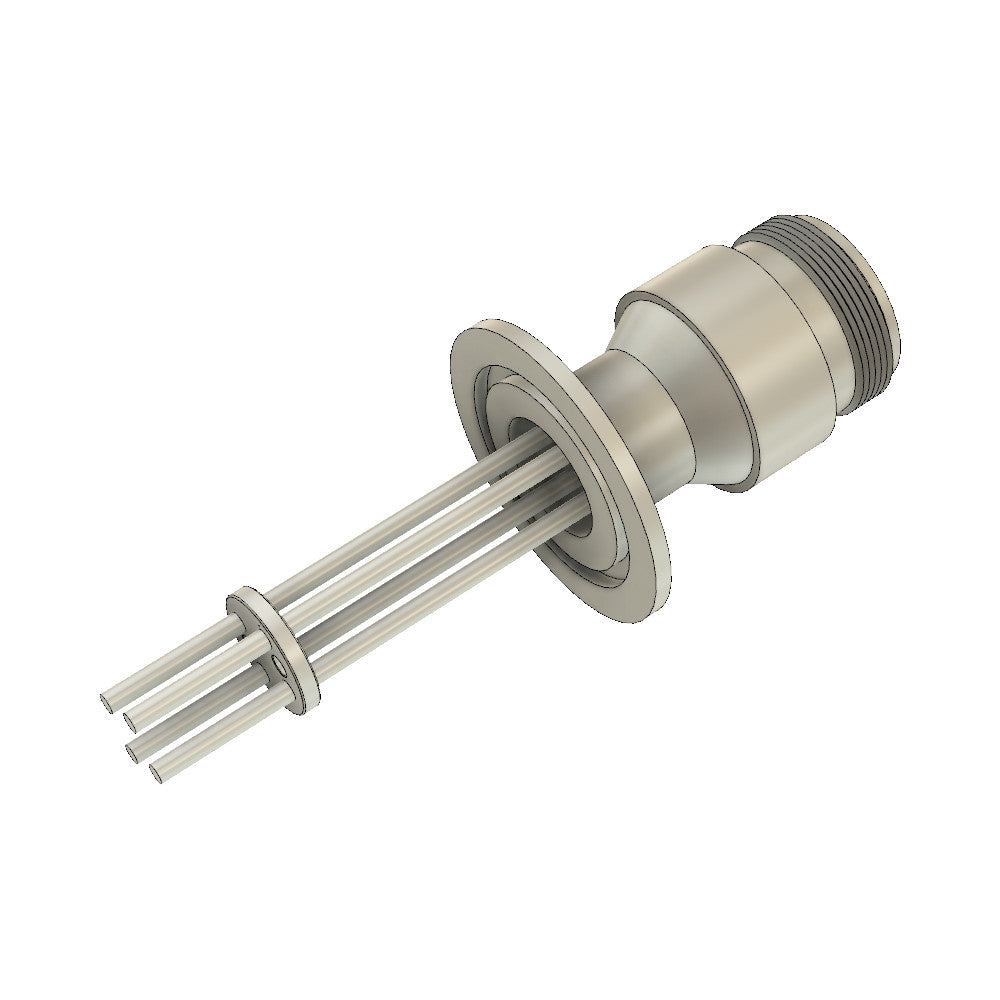

DN40KF MULTIPIN FEEDTHROUGH, 4 MOLYBDENUM PINS, 700V, AIR SIDE MS CONNECTORS

DN40KF MULTIPIN FEEDTHROUGH, 4 MOLYBDENUM PINS, 700V, AIR SIDE MS CONNECTORS

Allectra SKU: 221-40MO700-4-K40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN40KF flange
  • Compliance MS style plug
  • Conductor Material Molybdenum
  • Vacuum Seal Ceramic
  • Body Material Stainless Steel
  • Voltage Rating 700 V DC
  • Max Current 40Amps max. per pin
  • Temperature Range -100°C to 450°C (without socket)
  • Number of Pins 4
