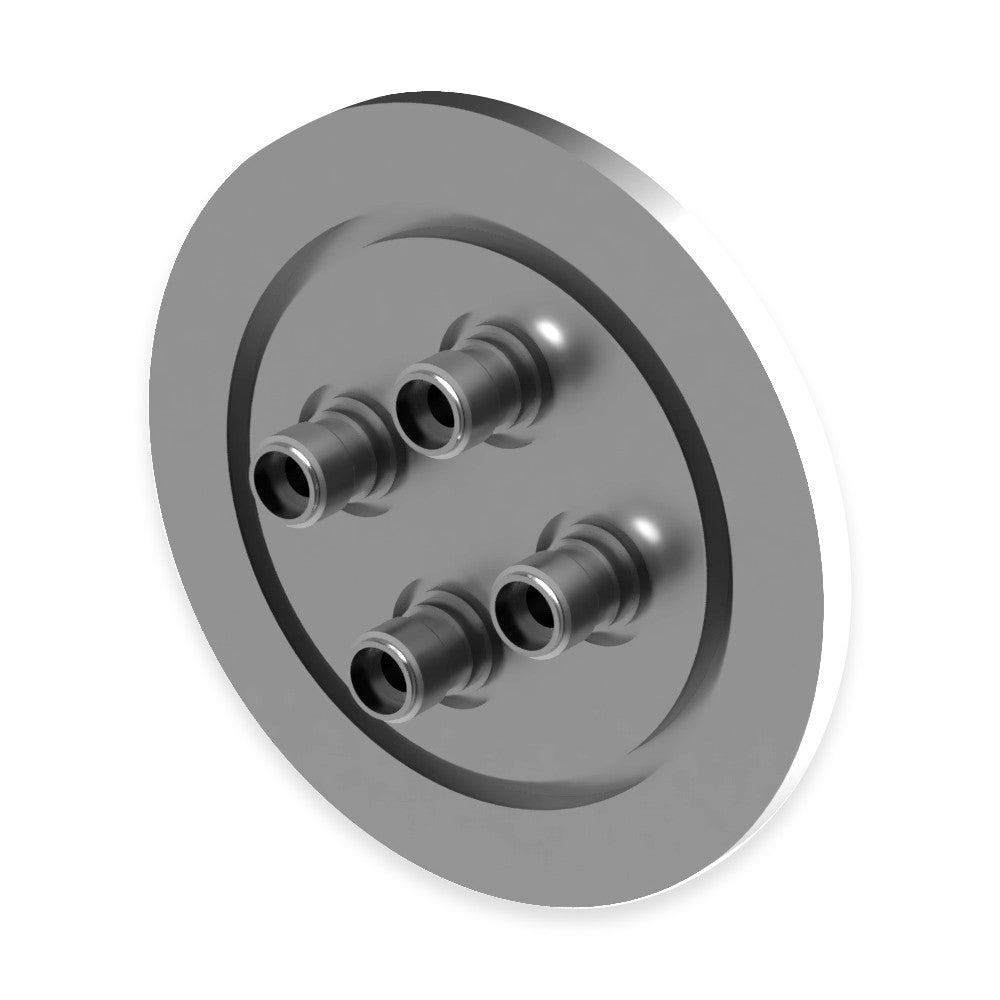

DN40KF 4x FIBRE OPTIC PC FEEDTHROUGHS, HIGH VACUUM, O RING VACUUM SEAL

F-SMA-905 couplers air and vacuum side. • Vacuum: HV, down to 10-8 mbar • Temperature: -20°C to 150°C • Flanges: 16KF, 25KF, 40KF and custom 16CF, 40CF and custom • Material: SS for F/T and coupler • O-Ring: Buna-N included Viton optional

Specifications

• Vacuum Leak Rate HV <1x10-8 mbar l/s
• Size or DN DN40KF flange
• Body Material Buna-N O ring
• Temperature Range -20°C - 150°C
• material .
