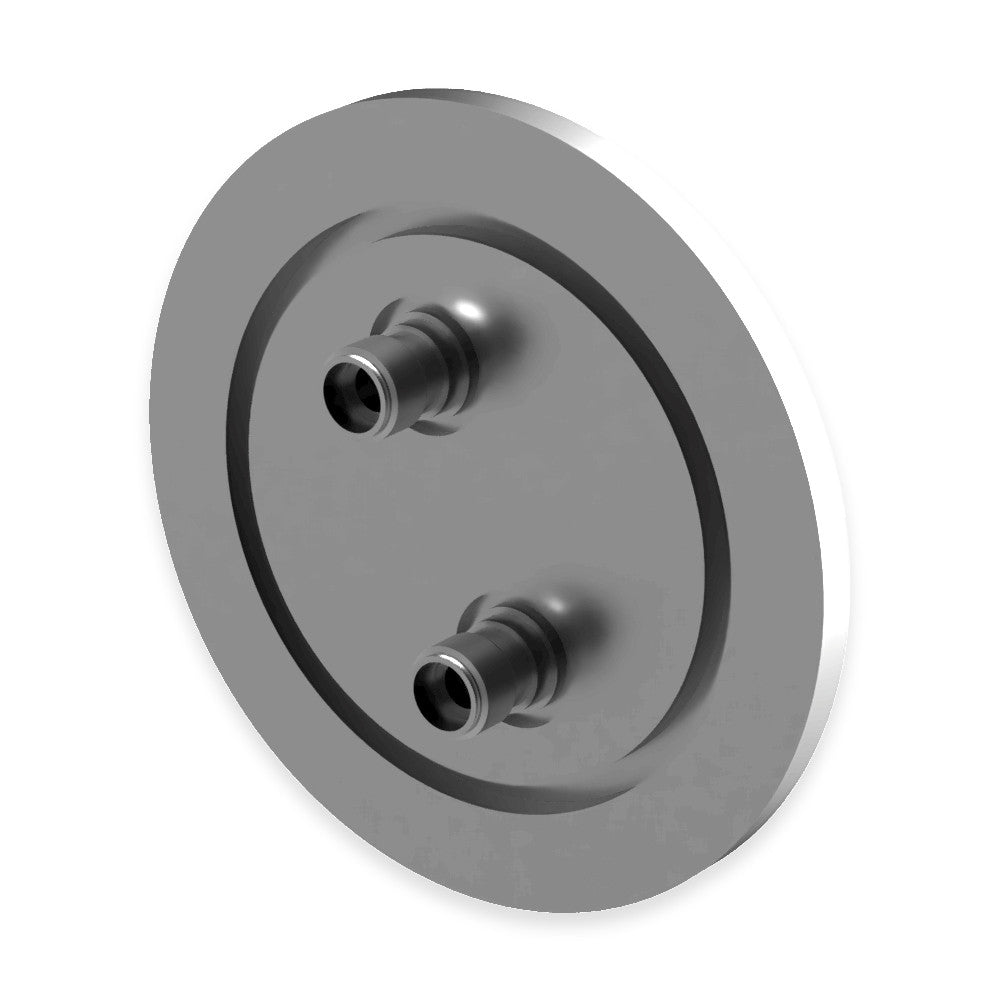

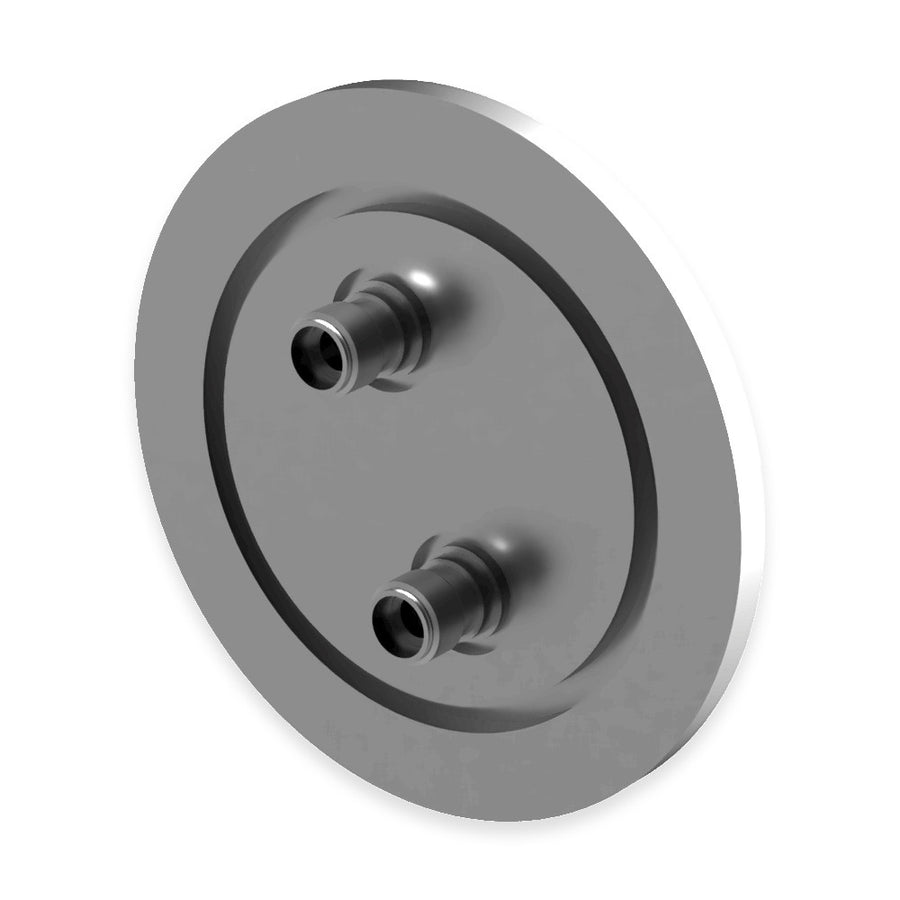

DN40KF 2x FIBRE OPTIC PC FEEDTHROUGHS, HIGH VACUUM, O RING VACUUM SEAL

Allectra SKU: 152-FCF-K40-2
DN40KF 2x FIBRE OPTIC PC FEEDTHROUGHS, HIGH VACUUM, O RING VACUUM SEAL

DN40KF 2x FIBRE OPTIC PC FEEDTHROUGHS, HIGH VACUUM, O RING VACUUM SEAL

Allectra SKU: 152-FCF-K40-2
Your inquiry was submitted successfully. You can expect to hear from us shortly.

F-SMA-905 couplers air and vacuum side. • Vacuum: HV, down to 10-8 mbar • Temperature: -20°C to 150°C • Flanges: 16KF, 25KF, 40KF and custom 16CF, 40CF and custom • Material: SS for F/T and coupler • O-Ring: Buna-N included Viton optional

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN40KF flange
  • Vacuum Seal Buna-N O ring
  • Body Material Stainless Steel
  • Temperature Range -20°C - 150°C
  • material .
