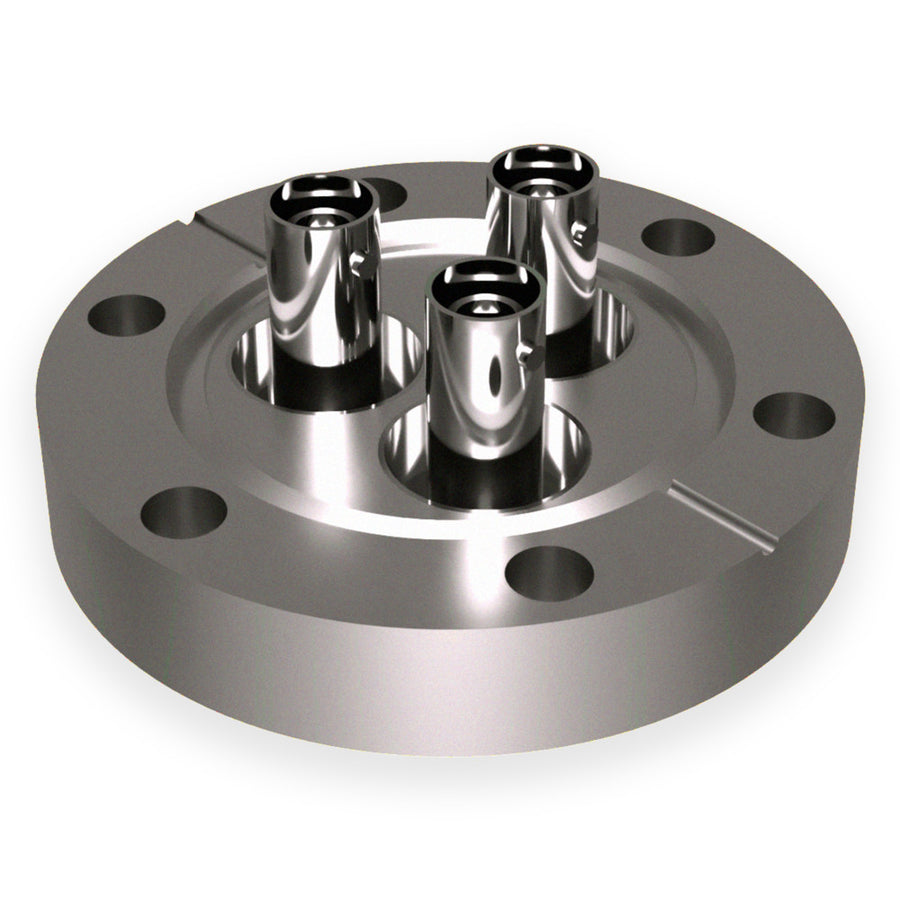

DN40CF WITH 3 X SHV 50 Ohm, 6KV COAXIAL DOUBLE SIDED, GROUNDED SHIELD FEEDTHROUGHS

Allectra SKU: 242-SHVD50-C40-3
DN40CF WITH 3 X SHV 50 Ohm, 6KV COAXIAL DOUBLE SIDED, GROUNDED SHIELD FEEDTHROUGHS

DN40CF WITH 3 X SHV 50 Ohm, 6KV COAXIAL DOUBLE SIDED, GROUNDED SHIELD FEEDTHROUGHS

Allectra SKU: 242-SHVD50-C40-3
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Body Material Stainless Steel 304(L)
  • Voltage Rating 6 kV DC
  • Max Current 3A per pin
  • Temperature Range -200°C to 300°C
  • Impedance 50 ohms
  • Number of Pins 3
