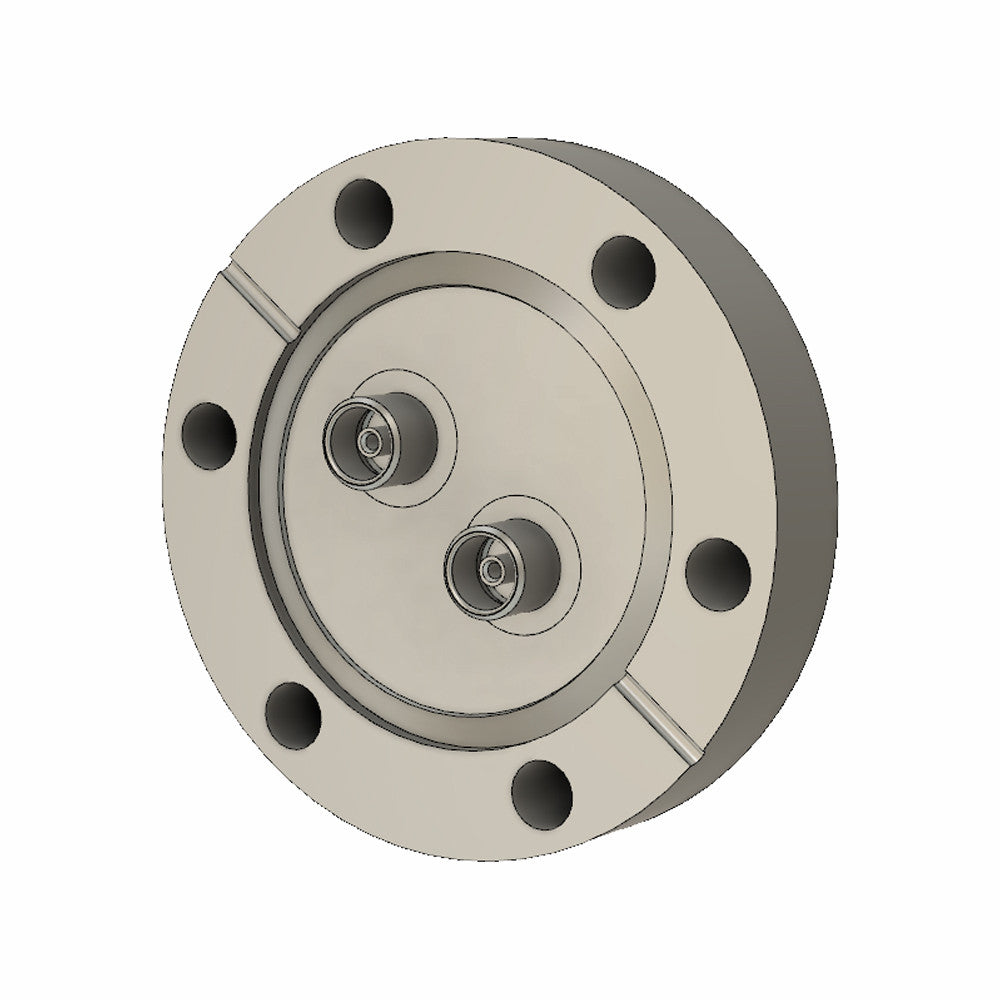

DN40CF WITH 2 x TRI-AXIAL FEEDTHROUGHS, 500V DC & 5A MAX, AIR AND VACUUM CONNECTORS INCLUDED

DN40CF WITH 2 x TRI-AXIAL FEEDTHROUGHS, 500V DC & 5A MAX, AIR AND VACUUM CONNECTORS INCLUDED

Allectra SKU: 243-TRIAX-C40-2-SET
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• INCLUDES HIGH QUALITY TRI-AXIAL VACUUM & AIRSIDE CONNECTORS (245-CON-TRIAX-HQ) • This is the ideal component for low current or voltage measurements, where high accuracy and lowest disruption of the signal are required

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Voltage Rating 500V DC
  • Max Current 5A max
  • Temperature Range -200°C - 300°C (feedthrough only) / 200°C ( with connectors and cable)
