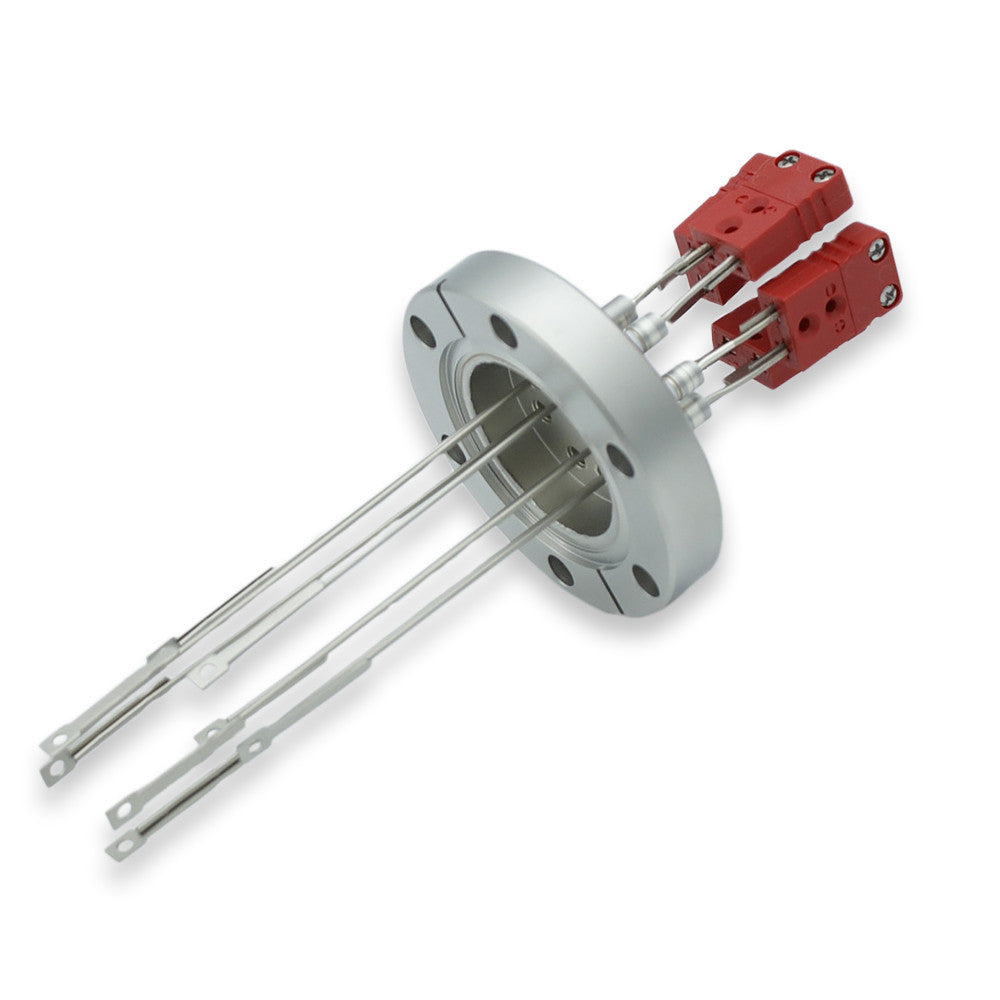

DN40CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 4 PAIRS, AIR & VAC. SIDE CONNECTORS INCLUDED

DN40CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 4 PAIRS, AIR & VAC. SIDE CONNECTORS INCLUDED

Allectra SKU: 262-TCC-4-C40
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole is shorter than the (-) pole • Miniature thermocouple connectors are included for the air side. • Type C thermocouple temperature range: 0oC to 2320oC

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -200°C to 450°C
  • Number Of Pairs 4
