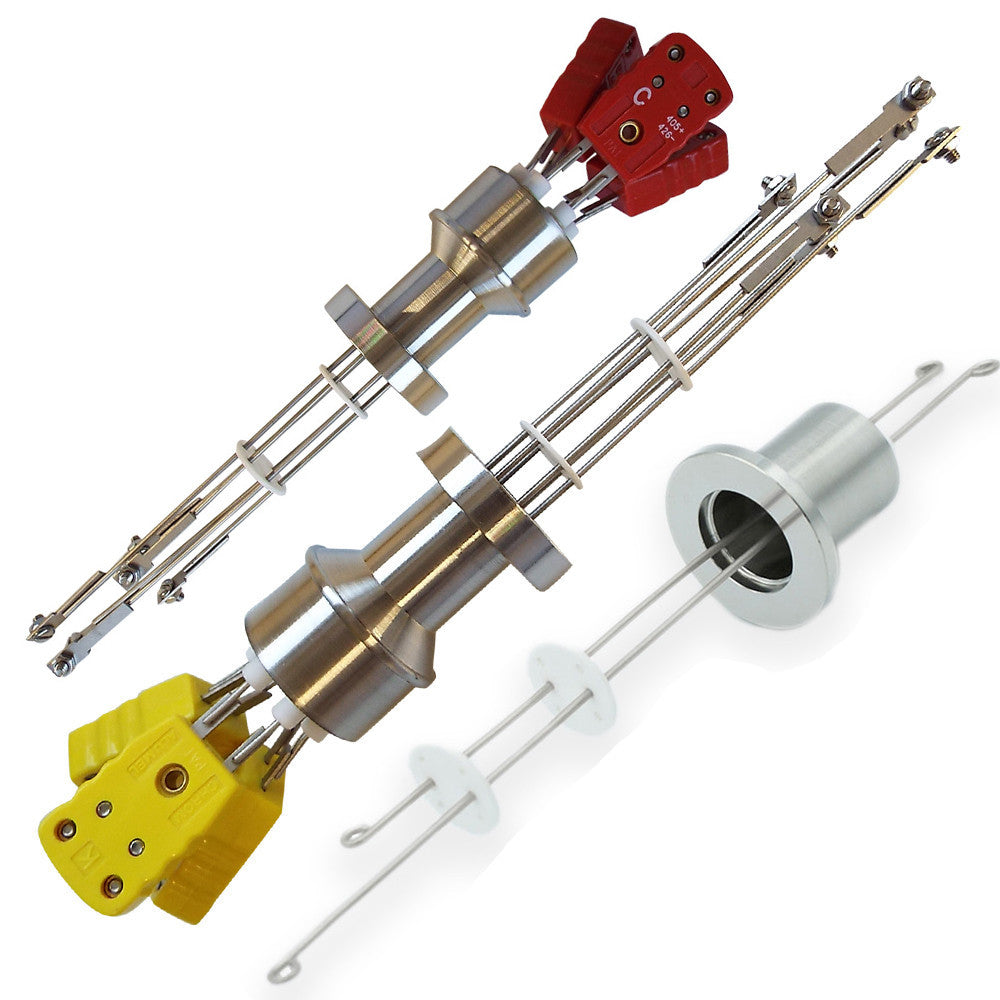

DN40CF THERMOCOUPLE FEEDTHROUGH, 5 PAIRS, TYPE K, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCK-5-C40
DN40CF THERMOCOUPLE FEEDTHROUGH, 5 PAIRS, TYPE K, AIR & VACUUM-SIDE CONNECTORS

DN40CF THERMOCOUPLE FEEDTHROUGH, 5 PAIRS, TYPE K, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCK-5-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Chromel) is shorter than the (-) pole (Alumel) • Miniature thermocouple connectors are included for the air side. • Type K thermocouple temperature range: -200oC to 1200oC

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance Type K thermocouple
  • Conductor Material .
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -100°C to 450°C (Air side Connector -65oC to 165oC)
  • Number of Pins 10
