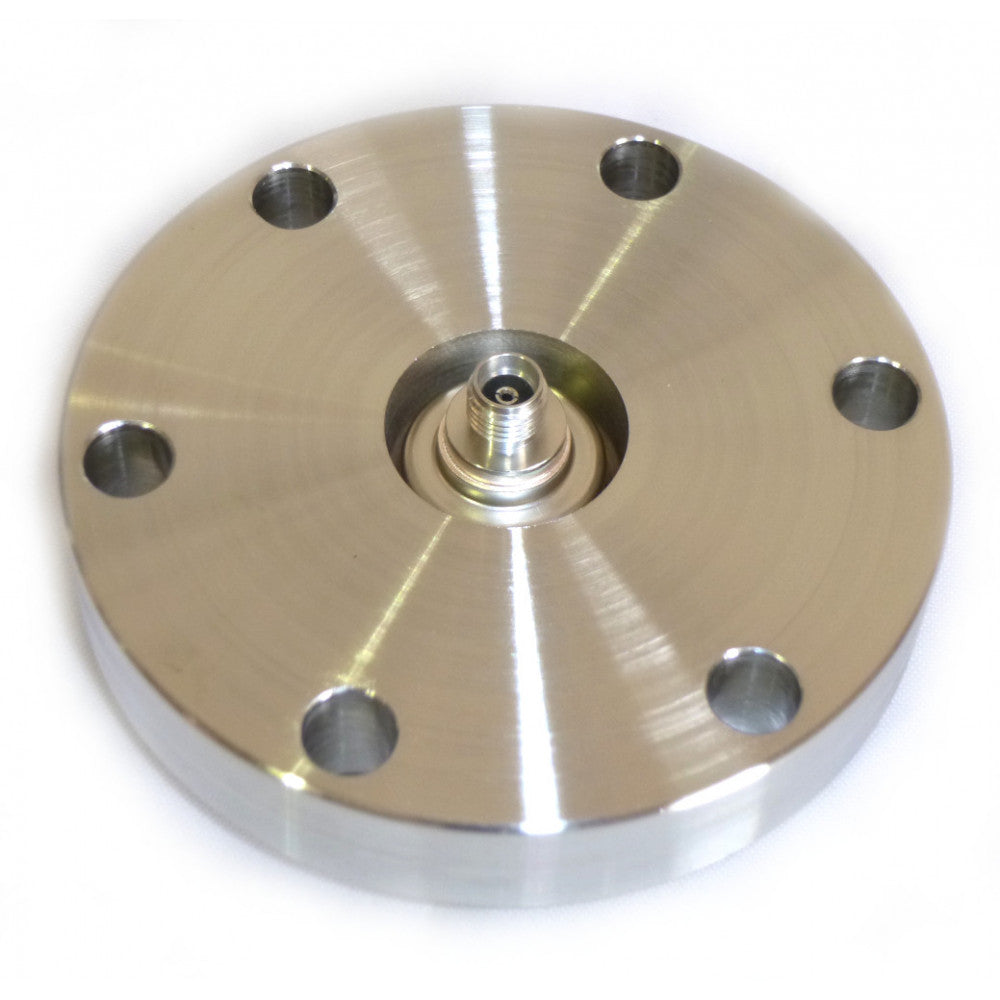

DN40CF SMA FEEDTHROUGH, 50 OHM, DOUBLE SIDED, GROUNDED SHIELD, 1000V DC, 3A MAX, 6.5 GHz

DN40CF SMA FEEDTHROUGH, 50 OHM, DOUBLE SIDED, GROUNDED SHIELD, 1000V DC, 3A MAX, 6.5 GHz

Allectra SKU: 242-SMAD50-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance SMA 50 ohm
  • Vacuum Seal Ceramic
  • Body Material Stainless Steel
  • Voltage Rating 1 kV DC
  • Max Current 3 Amps per pin
  • Temperature Range -200°C to 300°C (Air side Connector -65oC to 165oC)
  • Impedance 50 ohms
  • Number of Pins 1
