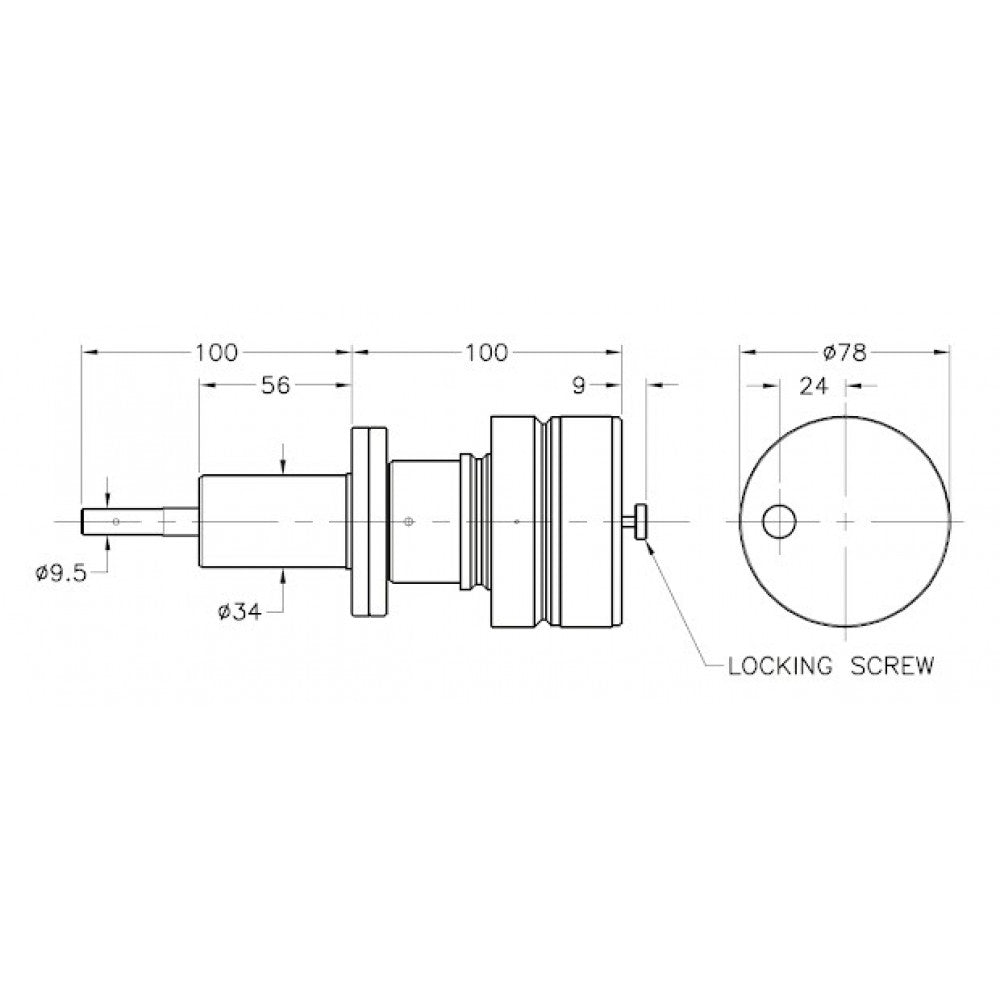

DN40CF ROTARY MOTION DRIVE, 100MM SHAFT LENGTH, 9.5MM SHAFT DIAMETER

Allectra SKU: ZRD6
DN40CF ROTARY MOTION DRIVE, 100MM SHAFT LENGTH, 9.5MM SHAFT DIAMETER

DN40CF ROTARY MOTION DRIVE, 100MM SHAFT LENGTH, 9.5MM SHAFT DIAMETER

Allectra SKU: ZRD6
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Continuous rotation • Angular repeatability of 0.5° • High speed/medium torque • Rotation lock • Bakeable to 230°C • Axial load 40N • RD6 shaft 9.5mm diameter • 100mm length

Specifications

  • Body Material Stainless Steel
  • Temperature Range 230°C
  • Shaft Diameter 9.5mm
  • Shaft Length 100mm
