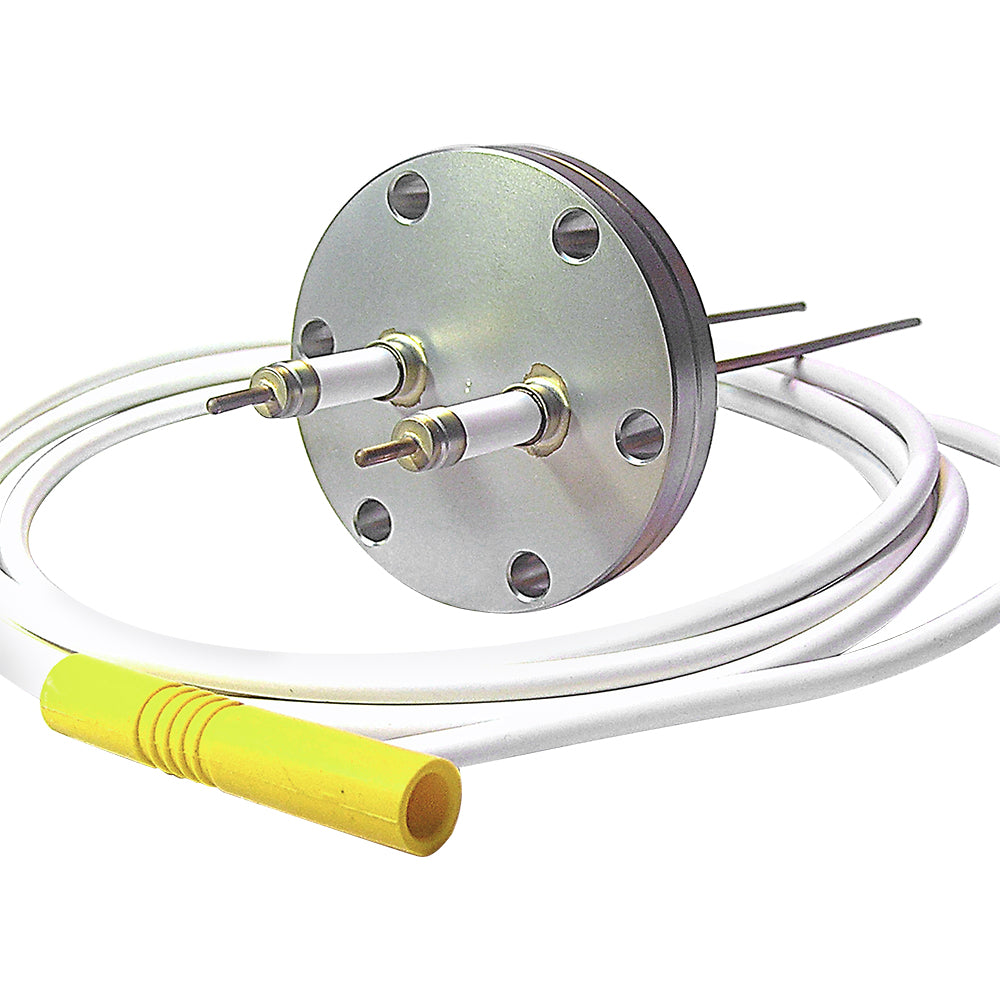

DN40CF POWER GLOVE F/T, 2x COPPER CONDUCTORS, 5KV 25A, WITH AIR SIDE SOCKETS & CABLES

DN40CF POWER GLOVE F/T, 2x COPPER CONDUCTORS, 5KV 25A, WITH AIR SIDE SOCKETS & CABLES

Allectra SKU: 265-025CU5K-2-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Air side cable not bakeable

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance Power glove type
  • Pin Gender male
  • Conductor Material COPPER
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 5kV
  • Max Current 25A
  • Temperature Range -100°C to 450°C
