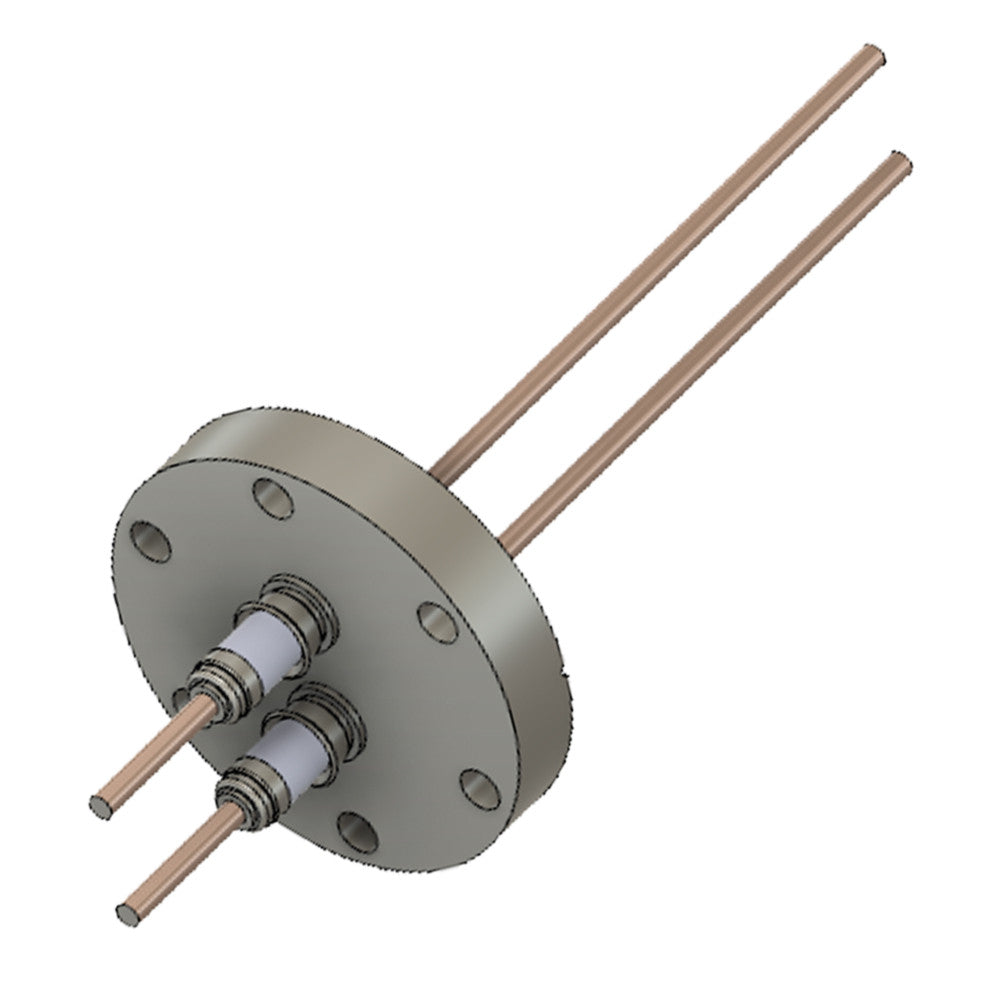

DN40CF POWER FEEDTHROUGH, COPPER CONDUCTOR, 2 PINS, 5KV DC, 100 AMPS PIN ⌀ 4mm

Allectra SKU: 261-40CU5K-2-C40
DN40CF POWER FEEDTHROUGH, COPPER CONDUCTOR, 2 PINS, 5KV DC, 100 AMPS PIN ⌀ 4mm

DN40CF POWER FEEDTHROUGH, COPPER CONDUCTOR, 2 PINS, 5KV DC, 100 AMPS PIN ⌀ 4mm

Allectra SKU: 261-40CU5K-2-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Conductor Material Copper
  • Body Material Stainless Steel/Ceramic
  • Max Current 100A
  • Temperature Range -100°C to 450°C
  • Number of Pins 2
