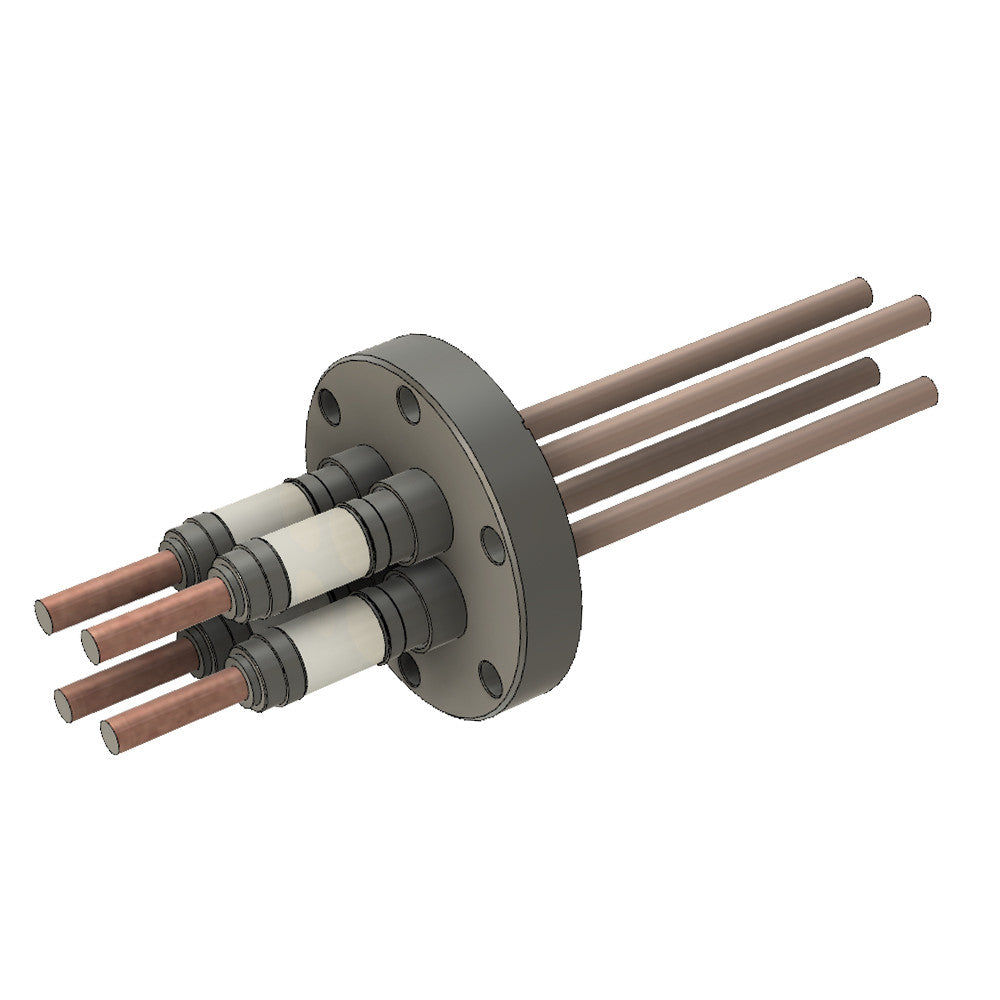

DN40CF POWER FEEDTHROUGH, 4x COPPER CONDUCTORS, 12KV, 180A

Allectra SKU: 264-63CU12K-4-C40
DN40CF POWER FEEDTHROUGH, 4x COPPER CONDUCTORS, 12KV, 180A

DN40CF POWER FEEDTHROUGH, 4x COPPER CONDUCTORS, 12KV, 180A

Allectra SKU: 264-63CU12K-4-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Conductor Material COPPER
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 12kV DC
  • Max Current 30 Amps per pin
  • Temperature Range -100°C to 450°C
