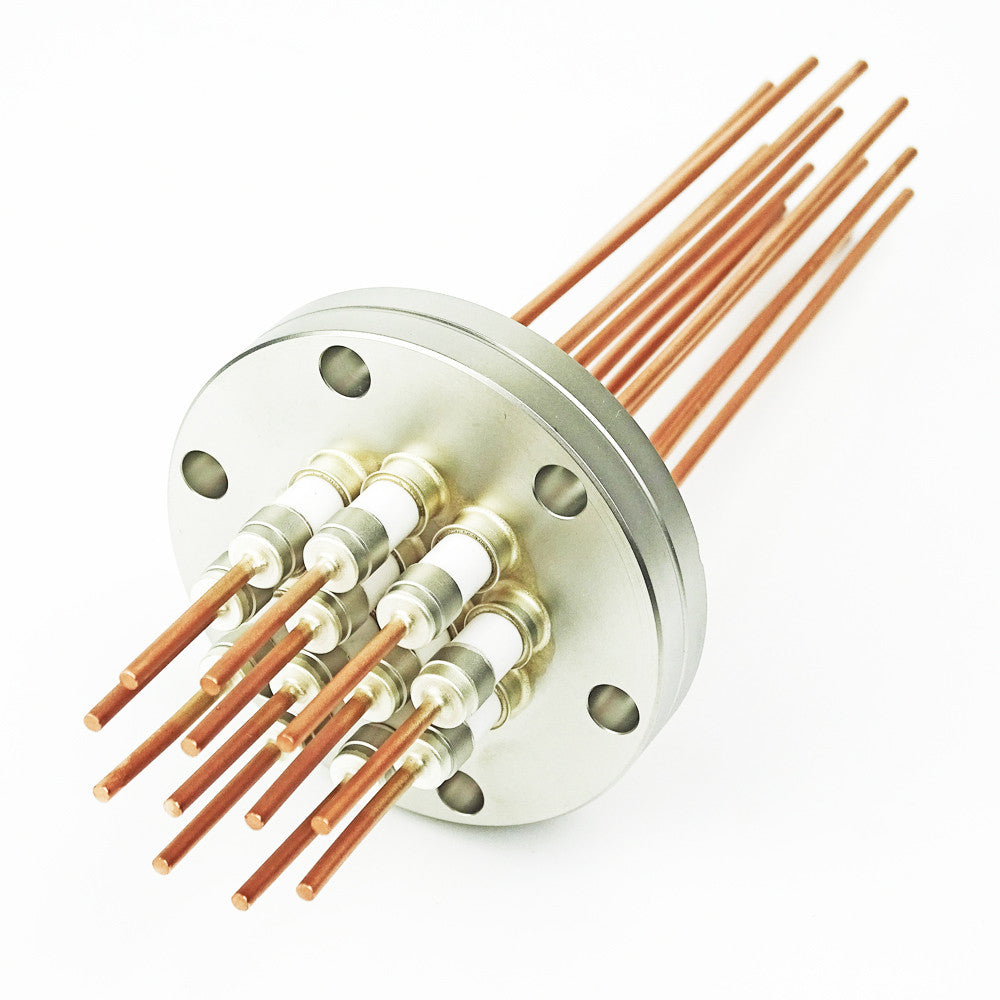

DN40CF POWER FEEDTHROUGH, 12x COPPER CONDUCTORS, 5KV, 50A

DN40CF POWER FEEDTHROUGH, 12x COPPER CONDUCTORS, 5KV, 50A

Allectra SKU: 264-24CU5K-12-C40
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Conductor Material COPPER
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 5 kV DC
  • Max Current 50 Amps per pin
  • Temperature Range -100°C to 450°C
