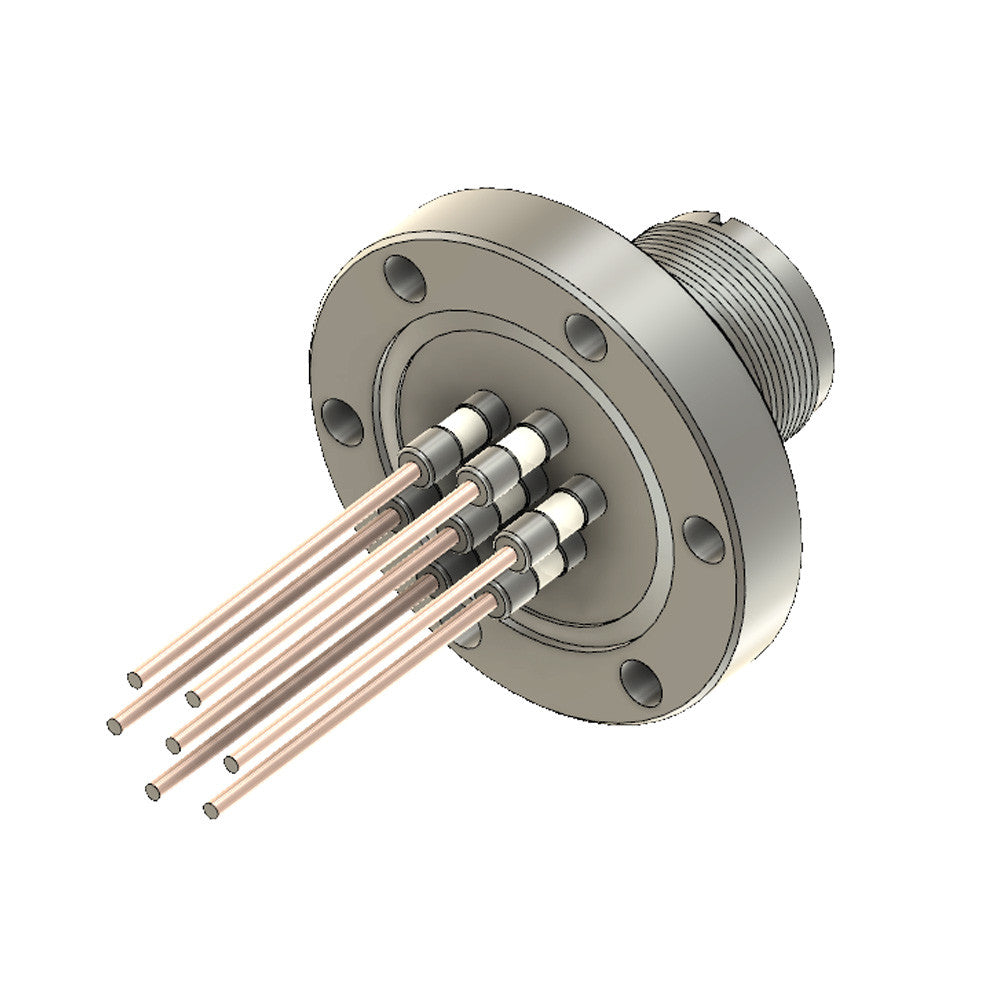

DN40CF MULTIPIN FEEDTHROUGH, 7 PINS, 23A PER PIN, 700V, AIR SIDE CONNECTOR INCLUDED

Allectra SKU: 221-23CU700-7-C40
DN40CF MULTIPIN FEEDTHROUGH, 7 PINS, 23A PER PIN, 700V, AIR SIDE CONNECTOR INCLUDED

DN40CF MULTIPIN FEEDTHROUGH, 7 PINS, 23A PER PIN, 700V, AIR SIDE CONNECTOR INCLUDED

Allectra SKU: 221-23CU700-7-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• VOLTAGE: 700 VOLTS DC • CURRENT: 23 AMPS PER PIN • TEMPERATURE RATING: -100 TO 450°C WITHOUT CONNECTOR

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Conductor Material Copper
  • Body Material Stainless Steel 304(L)
  • Voltage Rating 700 V DC
  • Max Current 10 Amps max. per pin
  • Temperature Range -100°C to 450°C (without connector)
  • Number of Pins 7
